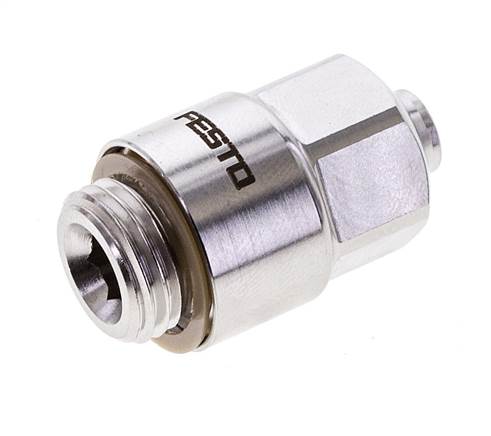

NPCK-C-D-G14-K10 (1489336) fitting

OT-FESTO040819

Príklady vyobrazení: NPCK-C-D-G18-K6 (1366257)   &   NPCK-C-D-G14-K10 (1489336)   &   NPCK-C-D-G18-K8 (1490383)  & ...
31,30€ vč. DPH
ks
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.eigenschaften_headline') }}
size Standard
Nominal width [mm] 6,1
Seal type on stud gasket
installation position arbitrary
Packing size 1
Operating pressure complete temperature range [bar] -0.95 to 12
Operating medium Compressed air to ISO 8573-1:2010 [7:-:-],
Water according to manufacturer declaration at www.festo.com
Information about operating and control medium Oiled operation possible
Corrosion resistant class KBK 4 - particularly severe corrosion stress
Food compatibility See expanded material information
ambient temperature [°C] -20 to 120
Nominal tightening torque [Nm] 20,0
Tolerance to nominal tightening torque ± 10 %
Product weight [g] 32,90
Pneumatic connection 1 Male thread G1/4
Pneumatic connection 2 For hose exterior diameter 10 mm
Stud material High-alloyed stainless steels
Material information RoHs compliant
Gasket material PEEK
Housing material High-alloyed stainless steels
OT-FESTO040819
{{ $t('shop.all.gewicht') }} 32,90 g / ks
{{ $t('shop.all.gtin') }} 4052568106218
{{ $t('shop.display.artikel.zollwarennummer') }} 73072910
{{ $t('shop.all.hersteller') }} Festo
