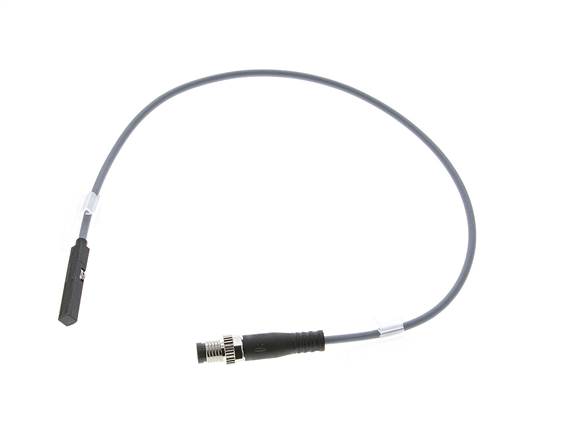

SME-8M-DS-24V-K-0,3-M8D (543861) proximity sensor
{{ $t('shop.all.artikelnummer') }}:
OT-FESTO020828
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Permission |
RCM mark, c UL us - Listed (OL) |
| CE certificate (see declaration of conformity) | to EU EMC directive |
| Special features | Oil resistant |
| Material information |
Copper and PTFE-free, RoHs compliant |
| Measurement principle | Reed magnetic |
| ambient temperature [°C] | -40 to 70 |
| Control output | Bipolar contact |
| Switching element function | NO contact |
| Max. output current [mA] | 500 |
| Max. output current in fastening sets [mA] | 80 |
| Max. switching capacity AC [VA] | 10,0 |
| Max. switching capacity DC [W] | 10,0 |
| Max. switching capacity DC in fastening sets [W] | 2,4 |
| Max. switching capacity AC in fastening sets [VA] | 2,4 |
| Voltage drop [V] | 1,170 |
| Short circuit resistance | no |
| Overload resistant | Not available |
| Operating voltage range AC [V] | 5 to 30 |
| Operating voltage range DC [V] | 5 to 30 |
| Reverse polarity protection | no |
| Electrical connection 1, connection type | Cable with plug |
| Electrical connection 1, connection technology | M8x1 A coded to EN 61076-2-104 |
| Electrical connection 1, number of pins / wires | 3 |
| Electrical connection 1, fastening type | Screw lock |
| Connection outlet direction | along |
| Test conditions line |
Bending radius strength to Festo standard, Cable track: 5 million cycles, bending radius 75 mm, Test conditions on request |
| Cable length [MTR] | 0,3 |
| Line properties | Standard+cable track |
| Cable sleeve material | TPE-U(PUR) |
| Fastening type |
Insertable from above into the slot, Permanently screwed |
| Product weight [g] | 8,9 |
| Housing material |
PA, TPE-U(PUR), High-alloyed stainless steels, brass nickel-plated |
| Switching status indicator | LED yellow |
| Ambient temperature for moving cable placements [°C] | -5 to 70 |
| Protection category |
IP65, IP68 |
{{ $t('shop.display.artikel.info') }} OT-FESTO020828
| {{ $t('shop.all.gewicht') }} | 8,9 g / ks |
| {{ $t('shop.all.gtin') }} | 4052568091774 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 85365019 |
| {{ $t('shop.all.hersteller') }} | Festo |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Náhled tisku)
datový list skupiny: SMX8 (ceský) festo/gruppendatenblaetter/smx8_cz.pdf
Dokumentace (ceský) festo/datenblaetter/543861_cs.pdf
Soubor 3D-CAD (objemový model) protected/cad/3d/70203/ot-festo020828#142109.stp
Dokumentace (ceský) festo/datenblaetter/543861_cs.pdf
Soubor 3D-CAD (objemový model) protected/cad/3d/70203/ot-festo020828#142109.stp
