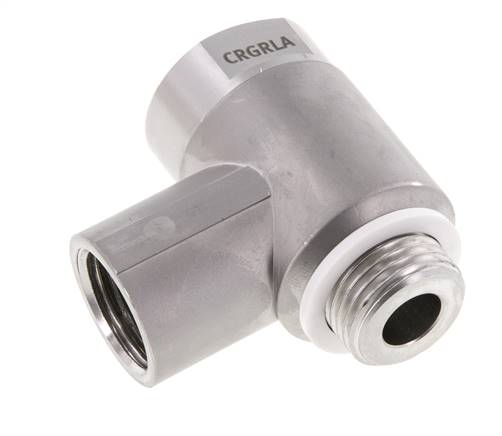

CRGRLA-1/2-B (161407) one-way flow control
{{ $t('shop.all.artikelnummer') }}:
OT-FESTO011746
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Valve function | Throttle blowback function |
| Pneumatic connection 1 | G1/2 |
| Pneumatic connection 2 | G1/2 |
| Setting element | slotted screw |
| Fastening type | Screwable |
| Normal nominal flow in one-way flow control [l/min] | 2100 |
| Normal nominal flow in check valve direction [l/min] | 1550 to 2200 |
| Operating pressure [bar] | 0.3 to 10 |
| ambient temperature [°C] | -20 to 80 |
| Maritime classification | see Certificate |
| installation position | arbitrary |
| Normal flow In one-way flow control 6 -> 0 bar [l/min] | 4265 |
| Normal flow In check valve direction 6 -> 0 bar [l/min] | 3550 to 4325 |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Information about operating and control medium | Oiled operation possible (required in further operations) |
| Medium temperature [°C] | -10 to 60 |
| Nominal width [mm] | 10,6 |
| Max. tightening torque [Nm] | 40,0 |
| Product weight [g] | 262,3 |
| Material information | RoHs compliant |
| Seals material |
FKM, PVC |
| Regulation screw material | High-alloyed stainless steels |
| Swivel connection material | High-alloyed stainless steels |
| Banjo bolt material | High-alloyed steel |
| Bearing temperature [°C] | -10 to 40 |
| Food compatibility | See expanded material information |
| Permitted actuation moment regulation disc [Nm] | 3,0 |
{{ $t('shop.display.artikel.info') }} OT-FESTO011746
| {{ $t('shop.all.gewicht') }} | 262,3 g / styk |
| {{ $t('shop.all.gtin') }} | 4052568129217 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84812090 |
| {{ $t('shop.all.hersteller') }} | Festo |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Udskriftsvisning)
Dokumentation (english) festo/datenblaetter/161407_en.pdf
Gruppedatablad: GRX-VFO (english) festo/gruppendatenblaetter/grx-vfo_en.pdf
Gruppedatablad: GRX-VFO (english) festo/gruppendatenblaetter/grx-vfo_en.pdf
