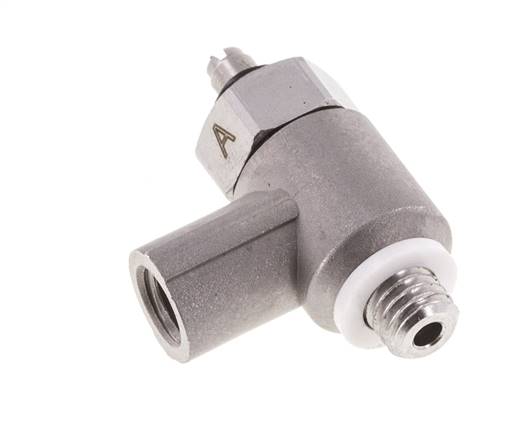

CRGRLA-M5-B (161403) one-way flow control

OT-FESTO011750

Principskitse: CRGRLA-1/8-B (161404)   &   CRGRLA-1/4-B (161405)   &   CRGRLA-3/8-B (161406)  & ...
75,42€ inkl. moms
styk
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Valve function Throttle blowback function
Pneumatic connection 1 M5
Pneumatic connection 2 M5
Setting element slotted screw
Fastening type Screwable
Normal nominal flow in one-way flow control [l/min] 95
Normal nominal flow in check valve direction [l/min] 77 to 95
Operating pressure [bar] 0.2 to 10
ambient temperature [°C] -20 to 80
Maritime classification see Certificate
installation position arbitrary
Normal flow In one-way flow control 6 -> 0 bar [l/min] 165
Normal flow In check valve direction 6 -> 0 bar [l/min] 140 to 150
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Medium temperature [°C] -10 to 60
Nominal width [mm] 2,0
Max. tightening torque [Nm] 1,5
Product weight [g] 10,2
Material information RoHs compliant
Seals material FKM,
PVC
Regulation screw material High-alloyed stainless steels
Swivel connection material High-alloyed stainless steels
Banjo bolt material High-alloyed steel
Bearing temperature [°C] -10 to 40
Food compatibility See expanded material information
Permitted actuation moment regulation disc [Nm] 0,2
OT-FESTO011750
{{ $t('shop.all.gewicht') }} 10,2 g / styk
{{ $t('shop.all.gtin') }} 4052568071929
{{ $t('shop.display.artikel.zollwarennummer') }} 84812090
{{ $t('shop.all.hersteller') }} Festo
