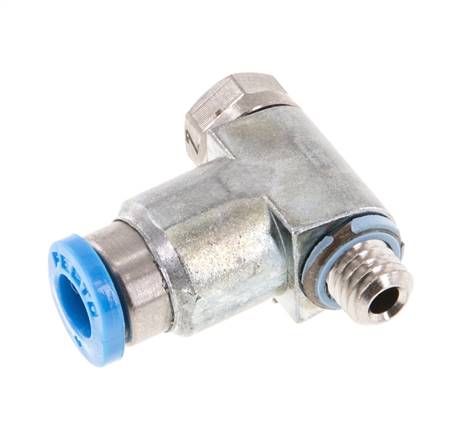

GRLZ-M5-QS-4-LF-C (175058) one-way flow control

OT-FESTO011898

Principskitse: GRLA-M3-QS-3 (175041)   &   GRLZ-M3-QS-3 (175043)   &   GRLA-M5-QS-4-LF-C (175056)  & ...
28,85€ inkl. moms
styk
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Valve function Supply air throttle check valve function
Pneumatic connection 1 QS-4
Pneumatic connection 2 M5
Setting element slotted screw
Fastening type Screwable
Normal nominal flow in one-way flow control [l/min] 48
Normal nominal flow in check valve direction [l/min] 40 to 65
Operating pressure [bar] 0.2 to 10
ambient temperature [°C] -10 to 60
installation position arbitrary
Normal flow In one-way flow control 6 -> 0 bar [l/min] 80
Normal flow In check valve direction 6 -> 0 bar [l/min] 65 to 110
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Medium temperature [°C] -10 to 60
Max. tightening torque [Nm] 1,5
Product weight [g] 9,0
Stud material brass,
nickel-plated
Material information RoHs compliant
Seals material NBR
Regulation screw material Brass
Swivel connection material Zinc pressure cast
Sleeve material POM
Operating pressure [psi] [psi] 2,9 bis 145
OT-FESTO011898
{{ $t('shop.all.gewicht') }} 9,0 g / styk
{{ $t('shop.all.gtin') }} 4052568037765
{{ $t('shop.display.artikel.zollwarennummer') }} 84812090
{{ $t('shop.all.hersteller') }} Festo
