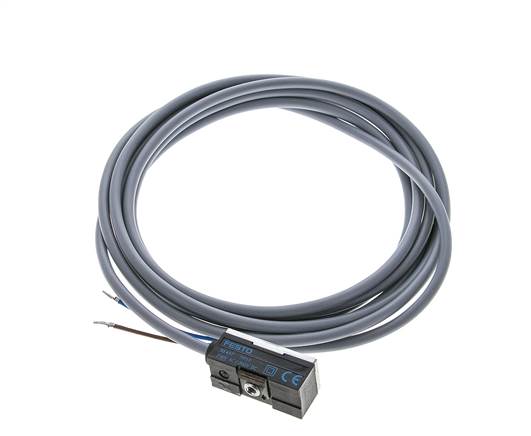

Egenskaber
| Design | Block structure |
| Material information | Copper and PTFE-free |
| Measurement principle | Reed magnetic |
| ambient temperature [°C] | -20 to 70 |
| Control output | Bipolar contact |
| Switching element function | NO contact |
| Reproducibility of the switching value | ± 0,1 mm |
| Switch on time [ms] | 0,5 |
| Max. output current [mA] | 1.000 |
| Max. switching capacity AC [VA] | 40 |
| Max. switching capacity DC [W] | 40 |
| Short circuit resistance | no |
| Overload resistant | Not available |
| Operating voltage range DC [V] | 0 to 200 |
| Reverse polarity protection | no |
| Electrical connection |
2-wire, cable |
| Fastening type | With Accessories |
| Housing material |
PC, PET, TPE-O, Steel, Zinc pressure cast, Epoxy resin |
| Ambient temperature for moving cable placements [°C] | -5 to 70 |
| Protection category | IP67 |
| CE certificate (see declaration of conformity) | to EU low voltage directive |
| Operating voltage range AC [V] | 0 to 250 |
| Complies to standard | DIN EN 60947-5-2 |
| Switch off time [ms] | 0,03 |
| Max. switching frequency [Hz] | 500 |
| Max. output current AC [mA] | 1.000 |
| Max. output current DC [mA] | 1.000 |
| Voltage drop [V] | <= 0 V |
| Residual current [mA] | 0 |
| Connection outlet direction | along |
| Cable length [MTR] | 2,5 |
| Cable sleeve material | PVC |
| Torque [Nm] | 2,9 |
| Surge voltage strength [kV] | 4 |
| Degree of contamination | 3 |
Yderligere oplysninger om OT-FESTO003649
| Vægt | 85 g / styk |
| GTIN | 4052568003685 |
| Toldvarenummer | 85365080 |
| Producent | Festo |
Dokumenter
- Gruppedatablad: SMX-1 (english) (PDF)
- Dokumentation (english) (PDF)
- Datablad (Udskriftsvisning)
- Datablad (engelsk) (Udskriftsvisning)
