VASB-55-1/4-NBR (35414) suction cup

OT-FESTO008368

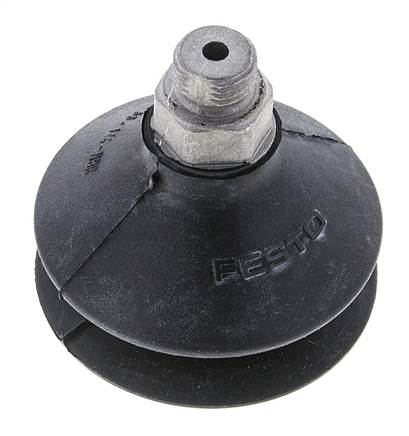

Principskitse: VASB-55-1/4-NBR
31,75€ inkl. moms
styk
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Nominal width [mm] 4,0
Suction diameter [mm] 55
Connection position top
Suction shape Round folding bellows1.5 times
Operating medium Atmospheric air based on ISO 8573-1:2010 [7:-:-]
ambient temperature [°C] -20 to 80
Holding force for nominal operating pressure [N] 106,00
vacuum connection G1/4
colour black
Shore hardness 60 ± 5
Stud material Zinc pressure cast
Material information RoHs compliant
Suction cups material NBR
Effective suction diameter [mm] 44,0
Pull-off force at 70% vacuum [N] 106,00
Mounting thread G1/4
Suction fastening G 1/4
OT-FESTO008368
{{ $t('shop.all.gewicht') }} 40 g / styk
{{ $t('shop.all.gtin') }} 4052568023270
{{ $t('shop.display.artikel.zollwarennummer') }} 84799070
{{ $t('shop.all.hersteller') }} Festo
