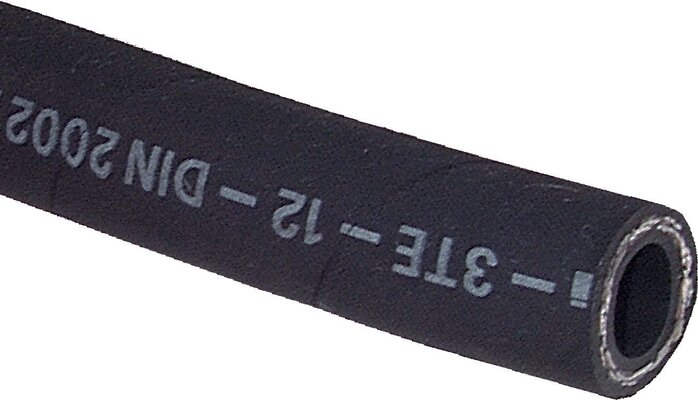

Item description
Materials:
Inner core: synthetic rubber, outer cover: synthetic rubber, ozone and weather resistant, pressure carrier: one or two textile braids
Media:
Mineral oil-based hydraulic oils, water (max. +70 °C), diesel oils (max. +93 °C), rapeseed oil, water-oil emulsions
Operating range:
Average pressure hydraulic systems
Delivered as:
Due to the manufacturing process, we cannot exclude that the goods are delivered in parts. We try to deliver a maximum of 3 sections smaller than 20 m. and none of the sections is shorter than 3 m.
Advantages:
-•high flexibility,
•small bending radii,
•low weight
Temperature range:
-40 to +125 °C
Inner core: synthetic rubber, outer cover: synthetic rubber, ozone and weather resistant, pressure carrier: one or two textile braids
Media:
Mineral oil-based hydraulic oils, water (max. +70 °C), diesel oils (max. +93 °C), rapeseed oil, water-oil emulsions
Operating range:
Average pressure hydraulic systems
Delivered as:
Due to the manufacturing process, we cannot exclude that the goods are delivered in parts. We try to deliver a maximum of 3 sections smaller than 20 m. and none of the sections is shorter than 3 m.
Advantages:
-•high flexibility,
•small bending radii,
•low weight
Temperature range:
-40 to +125 °C
Properties
| DN [mm] | 19 |
| Hose diameter (inner) [mm] | 19 |
| Hose diameter (outer) [mm] | 28,8 |
| Operating pressure [bar] | 70 |
| Burst pressure [bar] | 280 |
| Min. bend radius [mm] | 130 |
| Size parameter | 12 |
Further information on 3TE19
| Weight | 500 g / m |
| GTIN | 4050571195892 |
| Customs duty number | 40093100 |
| RoHS compliant | Yes |
Documents
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
