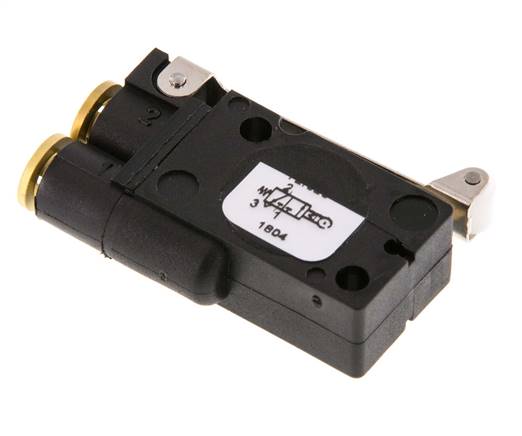

Item description
Materials:
Bodies: Plastic, seals: NBR, lever: Steel, roller: Plastic
Temperature range:
-10 to +60 °C
Operating pressure:
1,5 to 8 bar
Own air consumption:
< 1 l/min
Media:
oiled and unoiled filtered compressed air
Bodies: Plastic, seals: NBR, lever: Steel, roller: Plastic
Temperature range:
-10 to +60 °C
Operating pressure:
1,5 to 8 bar
Own air consumption:
< 1 l/min
Media:
oiled and unoiled filtered compressed air
Properties
| function | 3/2-way (NC) |
| Hose connection [mm] | 4 |
| Nominal width [mm] | 2 |
| flow [l/min] | 45 |
| Actuating force at 6 bar [N] | 1 |
Further information on ERS4
| Weight | 9,2 g / pcs |
| GTIN | 4050571283988 |
| Customs duty number | 84812090 |
| RoHS compliant | Yes |
YouTube videos:
Documents
- Catalogue page Atlas 9 (Page 746) (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
