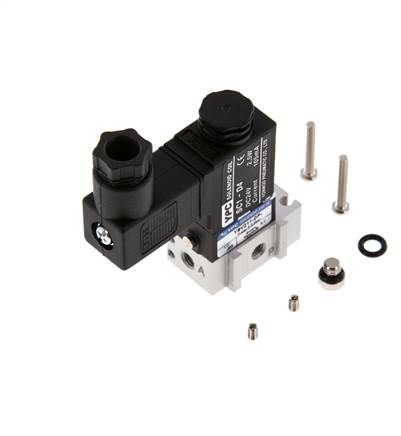

3/2-way solenoid valve, M 5, closed (NC), 230 V AC

Materials:
Body: aluminium, seals: NBR, pilot: polyamide (glass fibre reinforced)

Temperature range:
-10 to +60 °C

Media:
oiled and unoiled filtered compressed air

Switching time (at 5 bar):
< 20 ms

Nominal width:
1,1 mm

Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages

Voltage tolerance:
± 10 %

Protection class:
IP 65 (with rectangular plug SY100: IP 40)

Structural shape solenoid coil:
L

Scope of delivery:
Valve incl. interlinking accessories and locking screw (for individual use of the valve).

Advantages:
•the seal and screw included in the delivery, multiple valves should be interlinked with each other easily.

Information:
These valves are always supplied with a solenoid coil and a connector plug.

Control voltage	230 V AC
Version	Standard plug (size 0)
function	closed (NC)
Thread (3x)	M 5
Operating pressure [bar]	0 - 8
flow [l/min]	28
Power consumption (AC) [VA]	3,5
Spare solenoid coil	MAG L 230V

{{ $t('shop.all.gewicht') }}	85 g / pcs
{{ $t('shop.all.gtin') }}	4050571808327
{{ $t('shop.display.artikel.zollwarennummer') }}	84812090
{{ $t('shop.display.artikel.rohskonform') }}	{{ $t('shop.all.ja') }}
{{ $t('shop.all.hersteller') }}	YPC
