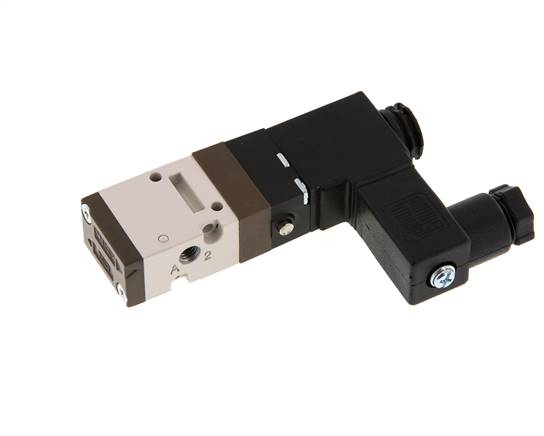

3/2-way solenoid valve, M 5, open (NO), 115 V AC
{{ $t('shop.all.artikelnummer') }}:
SF1701 IPSC-A1
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body and slider: aluminium, seals: NBR, pilot: polyamide (glass fibre reinforced)
Temperature range:
-10 to +60 °C
Media:
oiled and unoiled filtered compressed air
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Information:
These valves are always supplied with a solenoid coil and a connector plug.
Switching time (at 5 bar):
< 25 ms
Protection class:
IP 65 (with rectangular plug SY100: IP 40)
Structural shape solenoid coil:
L
Body and slider: aluminium, seals: NBR, pilot: polyamide (glass fibre reinforced)
Temperature range:
-10 to +60 °C
Media:
oiled and unoiled filtered compressed air
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Information:
These valves are always supplied with a solenoid coil and a connector plug.
Switching time (at 5 bar):
< 25 ms
Protection class:
IP 65 (with rectangular plug SY100: IP 40)
Structural shape solenoid coil:
L
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Control voltage | 115 V AC |
| Version | Standard plug (size 0) |
| function | open (NO) |
| Thread (2x) | M 5 |
| Thread exhaust air (1x) | M 5 |
| Operating pressure [bar] | 1,5 - 10 |
| flow [l/min] | 190 |
| Power consumption (AC) [VA] | 3,5 |
| Spare solenoid coil | MAG L 115V |
{{ $t('shop.display.artikel.info') }} SF1701IPSC-A1
| {{ $t('shop.all.gtin') }} | 4050571621599 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84812090 |
| {{ $t('shop.all.hersteller') }} | YPC |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 730) atlas9_seiten/730.pdf
