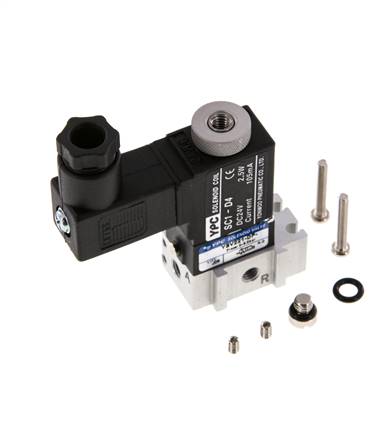

3/2-way solenoid valve, M 5, open (NO), 24 V AC
{{ $t('shop.all.artikelnummer') }}:
YSV221 DPSC-A4
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: aluminium, seals: NBR, pilot: polyamide (glass fibre reinforced)
Temperature range:
-10 to +60 °C
Media:
oiled and unoiled filtered compressed air
Switching time (at 5 bar):
< 20 ms
Nominal width:
1,1 mm
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Protection class:
IP 65 (with rectangular plug SY100: IP 40)
Structural shape solenoid coil:
L
Scope of delivery:
Valve incl. interlinking accessories and locking screw (for individual use of the valve).
Advantages:
•the seal and screw included in the delivery, multiple valves should be interlinked with each other easily.
Information:
These valves are always supplied with a solenoid coil and a connector plug.
Body: aluminium, seals: NBR, pilot: polyamide (glass fibre reinforced)
Temperature range:
-10 to +60 °C
Media:
oiled and unoiled filtered compressed air
Switching time (at 5 bar):
< 20 ms
Nominal width:
1,1 mm
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Protection class:
IP 65 (with rectangular plug SY100: IP 40)
Structural shape solenoid coil:
L
Scope of delivery:
Valve incl. interlinking accessories and locking screw (for individual use of the valve).
Advantages:
•the seal and screw included in the delivery, multiple valves should be interlinked with each other easily.
Information:
These valves are always supplied with a solenoid coil and a connector plug.
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Control voltage | 24 V AC |
| Version | Standard plug (size 0) |
| function | open (NO) |
| Thread (3x) | M 5 |
| Operating pressure [bar] | 0 - 8 |
| flow [l/min] | 28 |
| Power consumption (AC) [VA] | 3,5 |
| Spare solenoid coil | MAG L 24VAC |
{{ $t('shop.display.artikel.info') }} YSV221DPSC-A4
| {{ $t('shop.all.gewicht') }} | 85 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571808396 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84812090 |
| {{ $t('shop.all.hersteller') }} | YPC |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 729) atlas9_seiten/729.pdf
