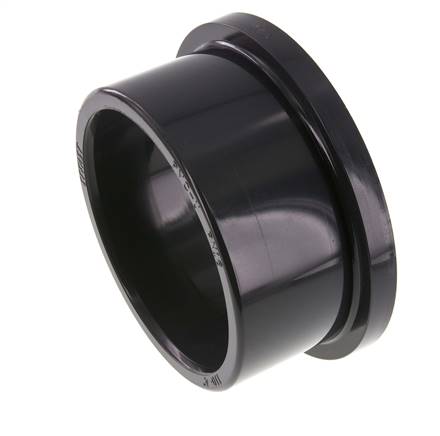

Adhesive flange adaptor for loose flanges, DN100, PVC-U, 110mm
Item number:
PVCBB 110
Item description
Fitting of PVC-U (EN 1452-3)
Materials:
PVC-U
Temperature range:
0 to +60 °C
Operating pressure:
max. 16 bar
Properties:
Abrasion resistant, non toxic, corrosion free, ideal for above ground and underground installations.
Media:
Water, many inorganic chemicals, many acid, alkaline and salt solutions. Nor resistant against aromatic and chlorinated hydrocarbons. Never use for compressed air or other gases under pressure!
Warning:
Not suitable for compressed air or other gases under pressure!
Materials:
PVC-U
Temperature range:
0 to +60 °C
Operating pressure:
max. 16 bar
Properties:
Abrasion resistant, non toxic, corrosion free, ideal for above ground and underground installations.
Media:
Water, many inorganic chemicals, many acid, alkaline and salt solutions. Nor resistant against aromatic and chlorinated hydrocarbons. Never use for compressed air or other gases under pressure!
Warning:
Not suitable for compressed air or other gases under pressure!
Properties
| Inner diameter d [mm] | 110 |
| Outer diameter D [mm] | 131 |
| DN [mm] | 100 |
| Flange diameter D1 [mm] | 149 |
| Length L [mm] | 62 |
| Collar thickness L1 [mm] | 12 |
| Z [mm] | 5 |
Further information on PVCBB110
| Weight | 420 g / pcs |
| GTIN | 4050571555238 |
| Tariff No. | 39174000 |
| RoHS compliant | Yes |
Documents
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
