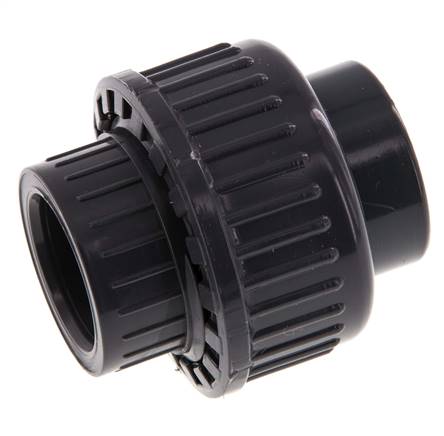

Adhesive sockets, screw connection, PVC-U/ EPDM, 20mm
{{ $t('shop.all.artikelnummer') }}:
PVCGV 20 EPDM
{{ $t('shop.display.artikel.beschreibung_headline') }}
Fitting of PVC-U (EN 1452-3)
Materials:
PVC-U
Temperature range:
0 to +60 °C
Operating pressure:
max. 16 bar
Properties:
Abrasion resistant, non toxic, corrosion free, ideal for above ground and underground installations.
Media:
Water, many inorganic chemicals, many acid, alkaline and salt solutions. Nor resistant against aromatic and chlorinated hydrocarbons. Never use for compressed air or other gases under pressure!
Materials:
O-ring: EPDM / FKM
Warning:
Not suitable for compressed air or other gases under pressure!
Materials:
PVC-U
Temperature range:
0 to +60 °C
Operating pressure:
max. 16 bar
Properties:
Abrasion resistant, non toxic, corrosion free, ideal for above ground and underground installations.
Media:
Water, many inorganic chemicals, many acid, alkaline and salt solutions. Nor resistant against aromatic and chlorinated hydrocarbons. Never use for compressed air or other gases under pressure!
Materials:
O-ring: EPDM / FKM
Warning:
Not suitable for compressed air or other gases under pressure!
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| O-ring material | EPDM |
| Inner diameter d [mm] | 20 |
| Outer diameter D [mm] | 43 |
| Length L [mm] | 16 |
| Z [mm] | 13 |
{{ $t('shop.display.artikel.info') }} PVCGV20EPDM
| {{ $t('shop.all.gewicht') }} | 40 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571555832 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 39174000 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 455) atlas9_seiten/455.pdf
3D CAD file (volume model) protected/cad/3d/73359/pvcgv20epdm67220.stp
3D CAD file (volume model) protected/cad/3d/73359/pvcgv20epdm67220.stp
{{ $t('shop.all.unverbindliche_richtwerte') }}
Accessories
