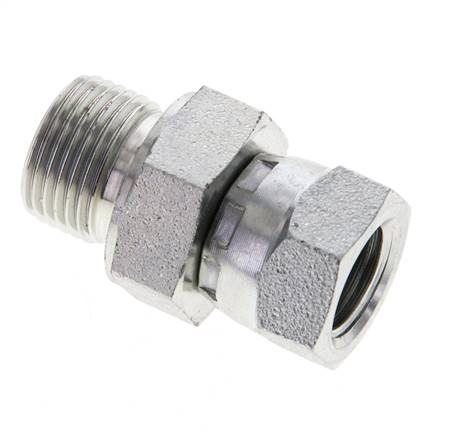

Adjustab. Screwed connect. 60° cone.(G 1/4")-G 3/8"(male thread)
Item number:
EV 1438 HD
Properties
| Material | Zinc plated steel |
| Thread internal | G 1/4" |
| Screw-in thread | G 3/8" |
| PN* [bar] | 325 |
Further information on EV1438HD
| Weight | 65 g / pcs |
| GTIN | 4050571286057 |
| Tariff No. | 73079290 |
YouTube videos:
Documents
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
*the safety factor reached in tests with hydraulic oil was four-times, please ask in individual cases
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
