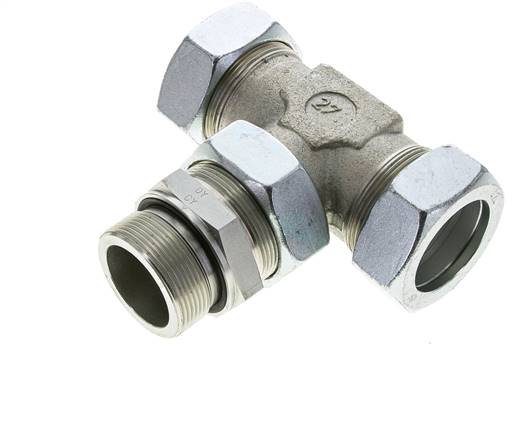

Adjustable T-cutting ring screw connection M 48x2-42 L (M52x2), Zinc plated steel

Item number:

ET 42 LM

All items of this group
€201.56 incl. 19 % VAT
pcs
Properties
Ma­te­r­ial Zinc plated steel
Model se­ries light model se­ries
Pipe di­am­e­ter (outer) 42 L (M52x2)
Screw-​in thread M 48x2
Op­er­at­ing pres­sure [bar] 160
Tem­per­a­ture range [°C] -35 to +100
Further information on ET42LM
Weight 1,9 kg / pcs
GTIN 4050571285357
Tariff No. 73079910
RoHS compliant Yes
Documents


All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
