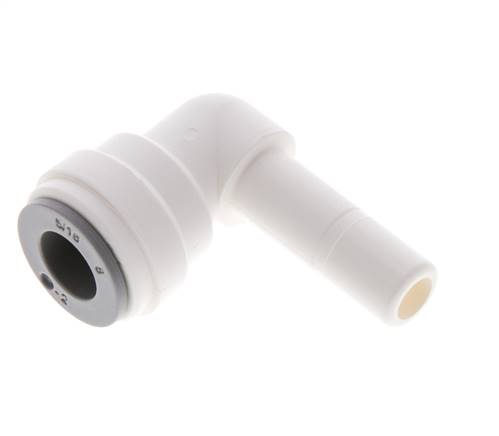

Angle push in fitting5/16" (7,94 mm) push in nipple-5/16" (7,94 mm) hose, IQS-LE (EPDM-seal)
{{ $t('shop.all.artikelnummer') }}:
IQSL 5/16H LE
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body and sleeve: POM (FDA 21 CFR 177.2470, NSF/ANSI 51 & 61), retaining claw: stainless steel, seals: EPDM (FDA 21 CFR 177.2600), lubricant: Silicone grease (NSF/ANSI 51 & 61)
Temperature range:
0 to +65 °C
Operating pressure:
-0.95 to 16 bar (Ø 3/8", 1/2", 10 mm & 12 mm: max. 11 bar)*
Media:
unoiled compressed air, water, liquid foodstuffs, non-hazardous gases and liquids (no mineral oils), mild chemicals
Approvals:
Materials according to FDA & NSF/ANSI
Advantages:
•available for metric and imperial hoses, G thread,
•R-thread and NPT-thread available,
•compatible with many other manufacturers
Body and sleeve: POM (FDA 21 CFR 177.2470, NSF/ANSI 51 & 61), retaining claw: stainless steel, seals: EPDM (FDA 21 CFR 177.2600), lubricant: Silicone grease (NSF/ANSI 51 & 61)
Temperature range:
0 to +65 °C
Operating pressure:
-0.95 to 16 bar (Ø 3/8", 1/2", 10 mm & 12 mm: max. 11 bar)*
Media:
unoiled compressed air, water, liquid foodstuffs, non-hazardous gases and liquids (no mineral oils), mild chemicals
Approvals:
Materials according to FDA & NSF/ANSI
Advantages:
•available for metric and imperial hoses, G thread,
•R-thread and NPT-thread available,
•compatible with many other manufacturers
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| D [mm] | 5/16" (7,94 mm) |
| D1 [mm] | 5/16" (7,94 mm) |
| Operating pressure [bar] | -0,95 to 16 |
{{ $t('shop.display.artikel.info') }} IQSL5/16HLE
| {{ $t('shop.all.gewicht') }} | 5,4 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571921590 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 39174000 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
| {{ $t('shop.all.hersteller') }} | Sang-A |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 87) atlas9_seiten/87.pdf
Documentation: Decision-making tool for the selection of IQS push in fittings and the matching hoses doku/entscheidungshilfen_steckanschluesse.pdf
Documentation: Appraisal FDA-NSF konf_erkl/stellungnahme_fda_nsf_iqsle_de_en_la_rev004.pdf
3D CAD file (volume model) protected/cad/3d/70709/iqsl516hle439833.stp
Documentation: Decision-making tool for the selection of IQS push in fittings and the matching hoses doku/entscheidungshilfen_steckanschluesse.pdf
Documentation: Appraisal FDA-NSF konf_erkl/stellungnahme_fda_nsf_iqsle_de_en_la_rev004.pdf
3D CAD file (volume model) protected/cad/3d/70709/iqsl516hle439833.stp
