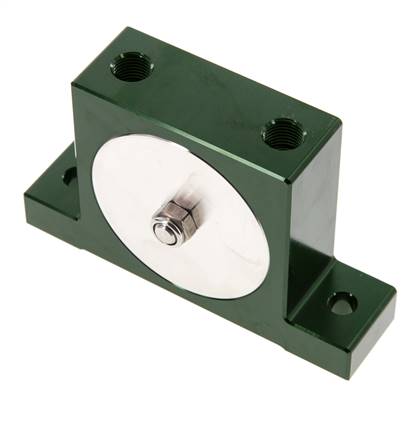

Item description
Materials:
Body: anodised aluminium, ball and track: hardened steel, cover: stainless steel 1.4305
Temperature range:
0 to +80 °C
Operating pressure:
2 to 6 bar
Media:
oiled and unoiled compressed air
Installation position:
Standing (not lying on the covers)
Application:
Higher frequencies and small vibration factors
Advantages:
•quick start-up,
•maintenance free as low wearing,
•simple mounting,
•low requirements of compressed air quality,
•common exhaust air ducting,
•ATEX compliant II 2G Exh T6 GB (up to max. +40°C)
Body: anodised aluminium, ball and track: hardened steel, cover: stainless steel 1.4305
Temperature range:
0 to +80 °C
Operating pressure:
2 to 6 bar
Media:
oiled and unoiled compressed air
Installation position:
Standing (not lying on the covers)
Application:
Higher frequencies and small vibration factors
Advantages:
•quick start-up,
•maintenance free as low wearing,
•simple mounting,
•low requirements of compressed air quality,
•common exhaust air ducting,
•ATEX compliant II 2G Exh T6 GB (up to max. +40°C)
Properties
| Force (at 6 bar) [N] | 2160 |
| Frequency (at 6 bar) [1/min] | 15500 |
| Air consumption (at 6 bar) [l/min] | 275 |
| G | G 1/4" |
| A [mm] | 80 |
| B [mm] | 49 |
| C [mm] | 128 |
| D [mm] | 104 |
| E [mm] | 9 |
| F [mm] | 16 |
Further information on VK2B
| Weight | 0,55 kg / pcs |
| GTIN | 4050571721442 |
| Customs duty number | 84123100 |
Documents
- Catalogue page Atlas 9 (Page 898) (PDF)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
