Item description
Band-It - assembly example:
step 1:
Pull the buckle with ears to the tape end on the tape. Form clamps and place tape on tape. Pull the buckle over both tapes and bend the tape end approx. 30 mm under the buckle. When there are high loads on the clamps (e.g. for hose assembly) pull the tape twice through the buckle.
step 2:
Insert tape in the clamping tool from the side, press on the cam lever and tighten the crank clamps by rotating them. The maximum tension is reached when the tape can no longer be pulled under the buckle (this is easily "fulfilled" by applying a finger).
step 3:
After reaching the required tension, bend the tool slowly over the buckle. At the same time, loosen the crank by approx. a half rotation in order to prevent loss of tension and cracks in the tape. In order to crop the tape, pull the cutting lever backwards.
step 4:
Hit the tape onto the buckle with the hammer and fold both buckle ears over to secure the tape end.
Application:
for light loading, e.g. sign fastener, cable bundling, (not recommended for hose connections)
Assembly tool:
C001, C003, C075
Materials:
rust-free, austenitic stainless steel with fully rounded edges
step 1:
Pull the buckle with ears to the tape end on the tape. Form clamps and place tape on tape. Pull the buckle over both tapes and bend the tape end approx. 30 mm under the buckle. When there are high loads on the clamps (e.g. for hose assembly) pull the tape twice through the buckle.
step 2:
Insert tape in the clamping tool from the side, press on the cam lever and tighten the crank clamps by rotating them. The maximum tension is reached when the tape can no longer be pulled under the buckle (this is easily "fulfilled" by applying a finger).
step 3:
After reaching the required tension, bend the tool slowly over the buckle. At the same time, loosen the crank by approx. a half rotation in order to prevent loss of tension and cracks in the tape. In order to crop the tape, pull the cutting lever backwards.
step 4:
Hit the tape onto the buckle with the hammer and fold both buckle ears over to secure the tape end.
Application:
for light loading, e.g. sign fastener, cable bundling, (not recommended for hose connections)
Assembly tool:
C001, C003, C075
Materials:
rust-free, austenitic stainless steel with fully rounded edges
Properties

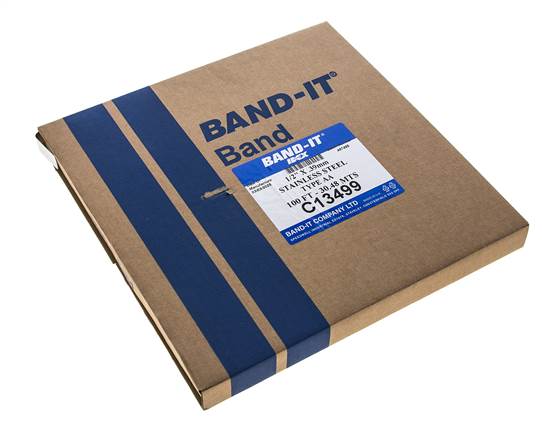

| Version | Tape (30,5 m roll) |
| Width [mm] | 12,7 (1/2") |
| Thickness [mm] | 0,38 |
| Tensile strength at break [N] | 2.670 |
| Strap* | C154 |
Further information on C134
| Weight | 1,3 kg / pcs |
| GTIN | 4050571229634 |
| Customs duty number | 72202041 |
| RoHS compliant | Yes |
| Manufacturer | Band-It |
YouTube videos:
Documents
- Catalogue page Atlas 9 (Page 422) (PDF)
- Data sheet (Print view)
*packing unit: 100 pieces
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
