Item description
Materials:
Zinc plated steel
Description:

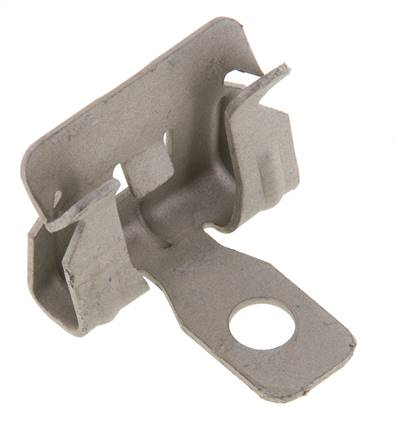

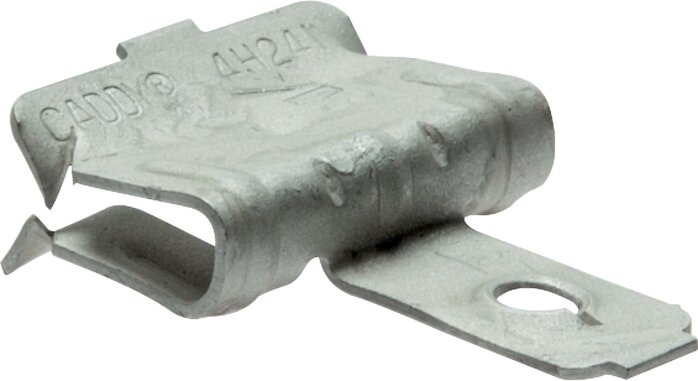

A beam clamp is hammered onto the side of a steel support and holds due to the spring force of the clamp. Attachment parts are fixed either via a screw / thread bar M 6 or chain. The pipe holder fixes / bundles inserted pipes via cable straps. The rounded edges of the pipe holder prevent damage to the hoses, cables or pipes.
Zinc plated steel
Description:
A beam clamp is hammered onto the side of a steel support and holds due to the spring force of the clamp. Attachment parts are fixed either via a screw / thread bar M 6 or chain. The pipe holder fixes / bundles inserted pipes via cable straps. The rounded edges of the pipe holder prevent damage to the hoses, cables or pipes.
Properties
| Version | with borehole 7,1 |

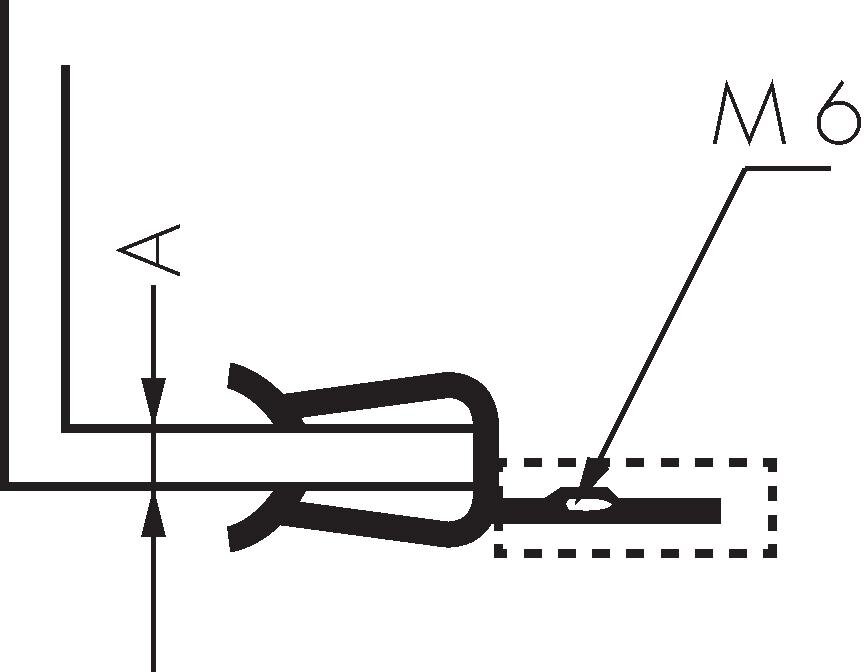

| Branch thickness A [mm] | 3 - 8 |
Further information on TKW8
| Weight | 13 g / pcs |
| GTIN | 4050571698003 |
| Customs duty number | 73269098 |
| RoHS compliant | Yes |
Documents
- Catalogue page Atlas 9 (Page 431) (PDF)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
