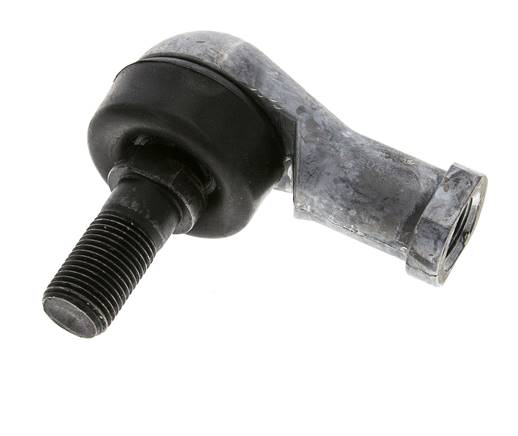

Item description
Materials:
Body: die-cast aluminium, spigot and ball: zinc plated steel
Body: die-cast aluminium, spigot and ball: zinc plated steel
Properties
| for piston rod thread A | M 16x1,5 |
| d2 [mm] | 22 |
| d3 [mm] | 44 |
| L [mm] | 84,0 |
| l [mm] | 79,5 |
| L1 [mm] | 64 |
| l1 [mm] | 23 |
| L2 [mm] | 32 |
| l2 [mm] | 60 |
| D1 [mm] | 22,0 |
| D2 [mm] | 27 |
Further information on SGS50/63-90
| Weight | 340 g / pcs |
| GTIN | 4050571625238 |
| Customs duty number | 84799070 |
| RoHS compliant | Yes |
Documents
- Catalogue page Atlas 9 (Page 896) (PDF)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
