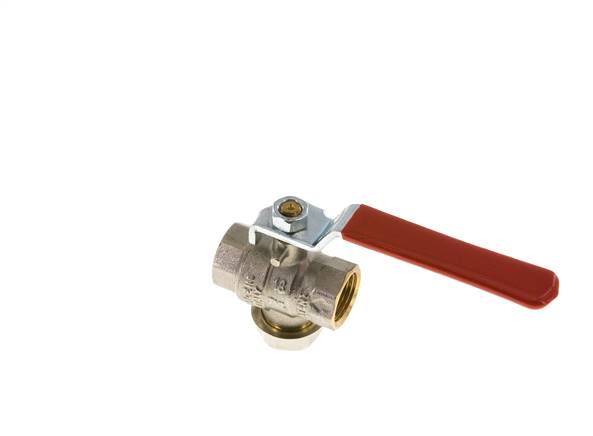

Brass ball valve with strainer, G 1/2"
{{ $t('shop.all.artikelnummer') }}:
KH 12 FI
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: nickel-plated brass, ball: chrome-plated brass, seal: PTFE / FKM / NBR, sieve: 1.4301 / PA, sealing cap: nickel-plated brass
Mesh size:
0,5 mm
Temperature range:
-20 to +100 °C
Media:
Water (not steam), neutral, gaseous and non-aggressive liquid media, mineral oils, compressed air, vacuum (max. -0.4 bar)
Advantages:
•Compact design,
•Economical replacement for two stop cocks and a strainer,
•Saves costs due to low installation effort,
•Easy control and cleaning of filter screen as it is depressurised when shut off
Body: nickel-plated brass, ball: chrome-plated brass, seal: PTFE / FKM / NBR, sieve: 1.4301 / PA, sealing cap: nickel-plated brass
Mesh size:
0,5 mm
Temperature range:
-20 to +100 °C
Media:
Water (not steam), neutral, gaseous and non-aggressive liquid media, mineral oils, compressed air, vacuum (max. -0.4 bar)
Advantages:
•Compact design,
•Economical replacement for two stop cocks and a strainer,
•Saves costs due to low installation effort,
•Easy control and cleaning of filter screen as it is depressurised when shut off
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | ball valve |
| Thread G | G 1/2" |
| DN [mm] | 12 |
| L [mm] | 50,7 |
| PN [bar] | -0.4 to 30 |
| H [mm] | 44,2 |
| H1 [mm] | 31,0 |
| R [mm] | 100 |
| Spare filter 0.5 mm | KH 12 FI SIEB |
{{ $t('shop.display.artikel.info') }} KH12FI
| {{ $t('shop.all.gewicht') }} | 250 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571831929 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84818099 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 494) atlas9_seiten/494.pdf
3D CAD file (volume model) protected/cad/3d/72227/kh12fi#373929.stp
3D CAD file (volume model) protected/cad/3d/72227/kh12fi#373929.stp
