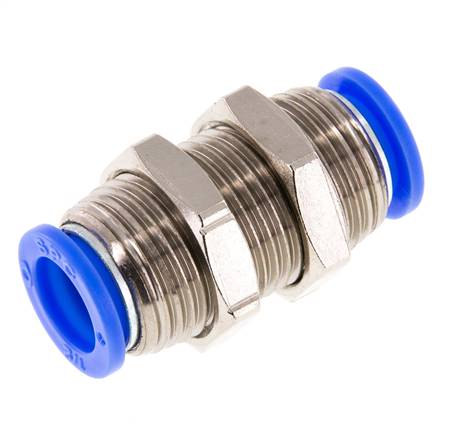

Item description
Materials:
Body: nickel-plated brass / PBT, seal: NBR, holding claws: stainless steel, cartridge: Zinc-plated ZnDC (only silicone-free seals and lubricants are used during assembly)
Temperature range:
0 to +60 °C
Operating pressure:
-0,95 to 10 bar
Media:
oiled and unoiled compressed air, neutral gases and water (may be used only after we approve the performance specifications)
Body: nickel-plated brass / PBT, seal: NBR, holding claws: stainless steel, cartridge: Zinc-plated ZnDC (only silicone-free seals and lubricants are used during assembly)
Temperature range:
0 to +60 °C
Operating pressure:
-0,95 to 10 bar
Media:
oiled and unoiled compressed air, neutral gases and water (may be used only after we approve the performance specifications)
Properties
| D [mm] | 1/2" (12,7 mm) |
| A | UNF 7/8" |
| Emax [mm] | 17 |
Further information on IQSS1/2
| Weight | 65 g / pcs |
| GTIN | 4050571384715 |
| Customs duty number | 74122000 |
| RoHS compliant | Yes |
| Manufacturer | Sang-A |
Documents
- Catalogue page Atlas 9 (Page 91) (PDF)
- Documentation: Decision-making tool for the selection of IQS push in fittings and the matching hoses (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
*round sleeve
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
