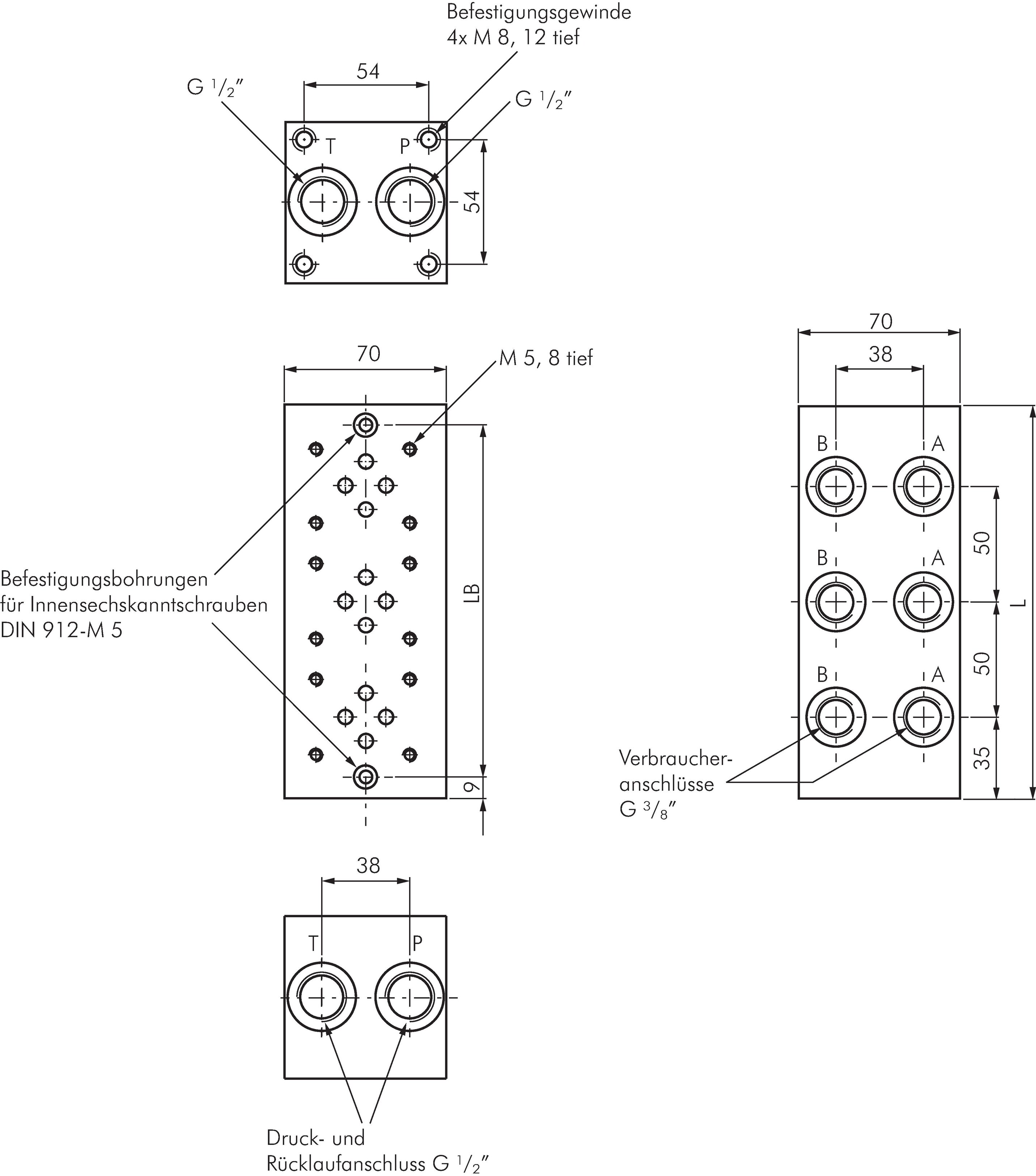

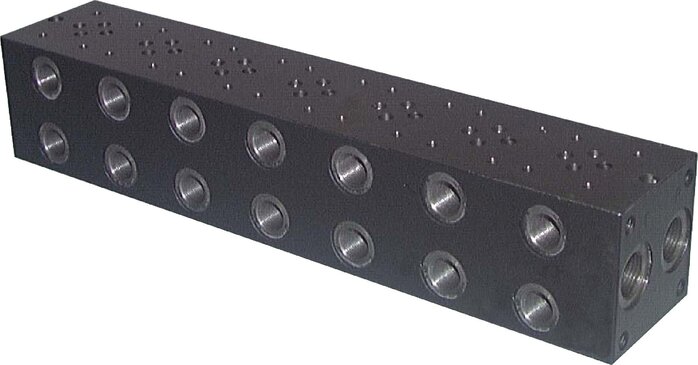

Description: The connections A & B are positioned lateral to the valve connection surface. Pressure and return flow connections P & T are drilled through and can be optionally used by both the sides. The connection plate can be mounted using either the M 8-female thread on the front side or the mounting holes* positioned longitudinally.
Note: The connection pattern NG 6 is standardised in accordance with DIN 24340-A6 / ISO 4401-03 (NG 6) / CETOP R 35 H-03 and NFPA-D03. The valves must be attached with screws of strength class 12.9.
*at type GRPS 61: P & T not drilled through, attachment from above
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
