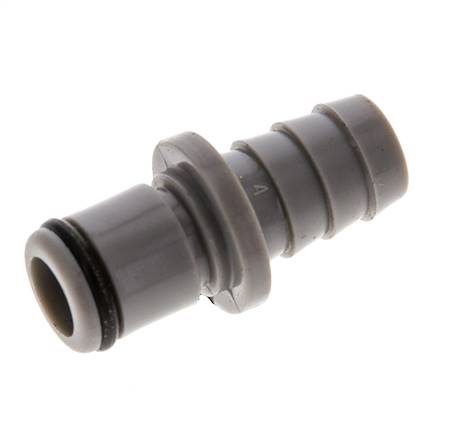

Coupling plug (LC) with hose screw connection, Polypropylene (grey)

KSS 9 LC PPL

Exemplary representation: Coupling plug with grommet, polypropylene, grey Exemplary representation: Plug without valve detailed view: Plug dimensions
3,33€ incl. VAT
pcs
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Plug diameter:
11 mm (holding groove approx. 1,3 mm)

Flow air (water)*:
560 - 2100 l/min (6 - 18 l/min)

Function:
Coupled by plugging the plug into the sleeve until you hear a “click”. Pressing the release button (for plastic couplings with a tube connection protected against accidental unlocking) releases the plug once again. It is possible to combine coupling plugs and coupling sockets with and without a shut-off valve, and made of different materials as desired. The shut-off valve prevents the medium from spilling out when uncoupled.


Type POM:


Materials:
Body and valves: POM (raw material in accordance with FDA), valve springs: Stainless steel AISI 316, seals: NBR, release button: AISI 301, bulkhead nut: nickel-plated brass

Temperature range:
-40°C to max. +80°C

Operating pressure:
-0.8 to 8.3 bar

Media:
Compressed air, water, alcohol, glycol, mineral oils, petrol, oxygen**, carbon dioxide, mild chemicals

Sterilisation possible with:
Formalin, isopropyl alcohol, ethyl alcohol

Operating range:
For general applications. High resistance to mineral oils.


Type polypropylene (please indicate colour: beige = PPC or grey = PPL):


Materials:
Body and valves: polypropylene (raw material in accordance with FDA), valve springs: Stainless steel AISI 316, seals: EPDM, release button: AISI 301, bulkhead nut: nickel-plated brass

Temperature range:
0°C to max. +70°C

Operating pressure:
-0.8 to 8,3 bar (>+27°C observe pressure reductions: +40°C: max. 7 bar,+ +50°C: max. 6,5 bar,+ 60°C: max. 5,9 bar,+ +70°C: max 5.2 bar)

Media:
Compressed air, water, many acids and alkaline solutions, alcohol, glycol, MEK, oxygen**, ozone, carbon dioxide, many chemicals

Sterilisation possible with:
Formalin, isopropyl alcohol, ethyl alcohol, ethylene oxide, gamma radiation

Operating range:
Suited for use with many chemicals. Not resistant to mineral oils.


Type chromium-plated brass:


Materials:
Body: Chromium-plated brass (food safe), valves: POM (raw material in accordance with FDA), valve springs: Stainless steel AISI 316, seals: NBR, release button: AISI 301, bulkhead nut: nickel-plated brass

Temperature range:
-40°C to max. +80°C

Operating pressure:
-0.8 to 17.3 bar

Media:
Compressed air, alcohol, glycol, mineral oils, petrol, oxygen**, carbon dioxide

Sterilisation possible with:
Formalin, isopropyl alcohol, ethyl alcohol, gamma radiation, heating to max. +121°C (uncoupled)

Operating range:
For applications with increased pressures or mechanical loads (e.g. due to frequent coupling). High resistance to mineral oils.

Compatible with****:
CPC Colder PLC, CPC Colder PLC12, CPC Colder LC, LinkTech series 40AC, LinkTech series 40PP, LinkTech series 40CB
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Material Polypropylene (grey)
Version Without shut-off valve
Hose diameter (inner) [mm] 9,5 (3/8")
Temperature range [°C] 0 to +70
Operating pressure [bar] -0.8 to 8.3
KSS9LCPPL
{{ $t('shop.all.gewicht') }} 1,7 g / pcs
{{ $t('shop.all.gtin') }} 4050571454753
{{ $t('shop.display.artikel.zollwarennummer') }} 84812090
{{ $t('shop.all.hersteller') }} LinkTech
