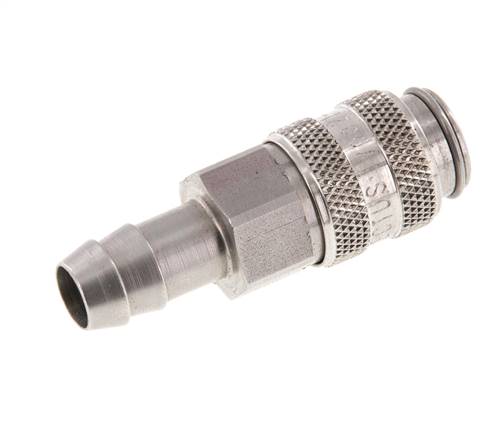

Coupling socket (NW5) 9 (3/8")mm hose, 1.4404

KDS 9 NW5 ES4A

Exemplary representation: Coupling sockets with female thread, stainless steel detailed view: Plug dimensions
276,37€ incl. VAT
pcs
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: brass, nickel-plated brass, hardened steel or stainless steel 1.4305, seal: NBR (stainless steel: FKM)

Temperature range:
-20°C to max. +100°C (Stainless steel: -15°C to max. +200°C)

Operating pressure:
-0,95 to 35 bar

Flow*:
510 l/min (in conjunction with blocking coupling plug -BA: 330 l/min)

Note:
Coupling plugs with valve for double-sided shut off (-BA) can only be used with the special coupling sockets (-BA) provided for them.

Compatible with**:
Rectus (21, 90), Camozzi, EWO, KANI, Festo (KD3/KS3), IMI-Norgren (233), Aventics (CP1-NW 5)

Optional:
Body made from 1.4404 -ES4A, usable for plug shut-off on both sides -BA, red sliding sleeve -RO, green sliding sleeve -GR, blue sliding sleeve -BL, black sliding sleeve-SCH
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Material 1.4404
Hose diameter (inner) [mm] 9 (3/8")
Can be used for plug shut-off on both sides no
Version Standard
Temperature range [°C] -15 to +200
KDS9NW5ES4A
{{ $t('shop.all.gewicht') }} 26 g / pcs
{{ $t('shop.all.gtin') }} 4050571400675
{{ $t('shop.display.artikel.zollwarennummer') }} 84812090
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
{{ $t('shop.all.hersteller') }} Parker
{{ $t('shop.all.dokumente') }}


{{ $t('shop.all.unverbindliche_richtwerte') }}
