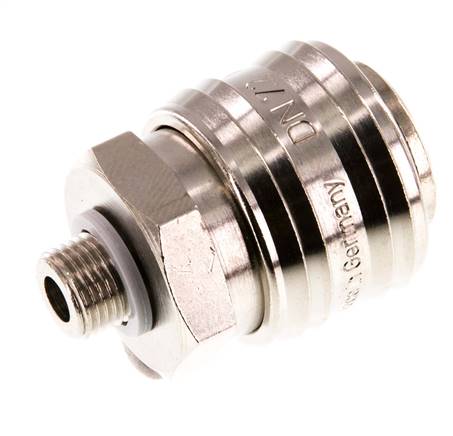

Coupling socket (NW7,2) G 1/8"(male thread), Nickel-plated brass
Item number:
KDG 18 NW7 MSV
Item description
Materials:
Body: brass, nickel-plated brass, hardened steel or stainless steel 1.4305, seal: NBR (stainless steel: FKM)
Temperature range:
-20°C to max. +100°C (stainless steel: -15°C to max. +200°C, plastic sleeve max. +80°C)
Operating pressure:
-0,95 to 35 bar
Flow***:
Standard: 1100 l/min, ball lock: 1850 l/min, ball lock & plastic sleeve: 2100 l/min (each coupling in conjunction with blocking coupling plug -BA: 800 l/min)
Note:
Coupling plugs with valve for double-sided shut off (-BA) can only be used with the special coupling sockets (-BA) provided for them.
Compatible with**:
Rectus (25, 26, 1600, 1625), TEMA (1600), CEJN (320), JWL (520, 530, 560), Legris (25, 26), Parker (PE, PEF), Prevost (E ... 07), Festo (KD4 / KS4 / NPHS), IMI-Norgren (238), Aventics (CP1-NW 7 / 7.8) and many other German brands
Optional:
FKM seals (-15°C to +160°C) instead of NBR seals -V, can be used for plugs blocking both sides -BA, NPT thread -NPT
Body: brass, nickel-plated brass, hardened steel or stainless steel 1.4305, seal: NBR (stainless steel: FKM)
Temperature range:
-20°C to max. +100°C (stainless steel: -15°C to max. +200°C, plastic sleeve max. +80°C)
Operating pressure:
-0,95 to 35 bar
Flow***:
Standard: 1100 l/min, ball lock: 1850 l/min, ball lock & plastic sleeve: 2100 l/min (each coupling in conjunction with blocking coupling plug -BA: 800 l/min)
Note:
Coupling plugs with valve for double-sided shut off (-BA) can only be used with the special coupling sockets (-BA) provided for them.
Compatible with**:
Rectus (25, 26, 1600, 1625), TEMA (1600), CEJN (320), JWL (520, 530, 560), Legris (25, 26), Parker (PE, PEF), Prevost (E ... 07), Festo (KD4 / KS4 / NPHS), IMI-Norgren (238), Aventics (CP1-NW 7 / 7.8) and many other German brands
Optional:
FKM seals (-15°C to +160°C) instead of NBR seals -V, can be used for plugs blocking both sides -BA, NPT thread -NPT
Properties
| Material | Nickel-plated brass |
| Thread external | G 1/8" |
| Seals | NBR |
| Can be used for plug shut-off on both sides | no |
| Version | Standard |
| actual nominal width [mm] | 7,2 |
| Spanner width [mm] | 22 |
| Temperature range [°C] | -20 to +100 |
Further information on KDG18NW7MSV
| Weight | 70 g / pcs |
| GTIN | 4050571154349 |
| Tariff No. | 84818079 |
| RoHS compliant | Yes |
