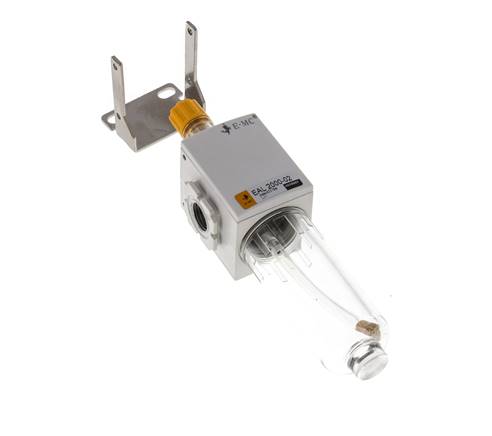

Item description
Materials:
Body: Aluminium, gaskets: NBR, container: Polycarbonate
Temperature range:
-5 to +60 °C
Input pressure:
0,5 to 10 bar
Media:
Compressed air, neutral gases
Scope of delivery:
Oiler including mounting bracket
Advantages:
•Simple assembly of individual components of a series by means of coupling packages,
•Filling with oil under pressure possible,
•Fixing bracket included in the scope of delivery,
•Double-walled transparent vessel (not series 2A)
Body: Aluminium, gaskets: NBR, container: Polycarbonate
Temperature range:
-5 to +60 °C
Input pressure:
0,5 to 10 bar
Media:
Compressed air, neutral gases
Scope of delivery:
Oiler including mounting bracket
Advantages:
•Simple assembly of individual components of a series by means of coupling packages,
•Filling with oil under pressure possible,
•Fixing bracket included in the scope of delivery,
•Double-walled transparent vessel (not series 2A)
Properties
| Model series | Eco-Line 2A |
| Thread | G 1/4" |
| Container design | Plastic container |
| flow [l/min] | 26 - 2600 |
| Oil supply [cm³] | 30 |
| Reaction limit (5.1 bar) [l/min] | 26 |
| L [mm] | 43 |
| H [mm] | 148 |
| H1 [mm] | 55 |
| Coupling kit | KP EA2000 |
Further information on EAL2000-02
| Weight | 180 g / pcs |
| GTIN | 4050571924201 |
| Customs duty number | 84811005 |
| RoHS compliant | Yes |
| Manufacturer | EMC |
Documents
- Catalogue page Atlas 9 (Page 561) (PDF)
- Documentation: Decision aid for selection of air units (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
