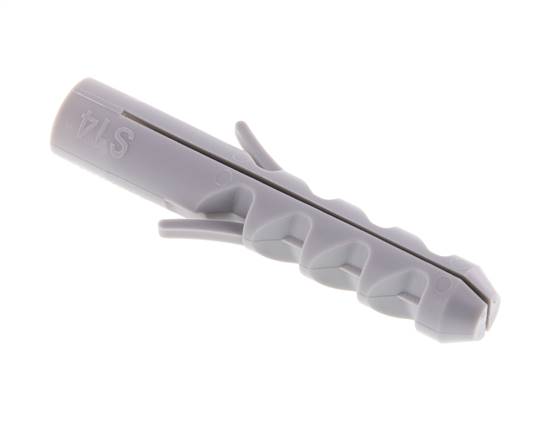

Item description
Application:
Concrete and solid brick wall materials are not suited for honeycomb bricks. Dowels must be placed flush into the carrying underground.
Screws that can be used:
Wood or chipboard screws
Concrete and solid brick wall materials are not suited for honeycomb bricks. Dowels must be placed flush into the carrying underground.
Screws that can be used:
Wood or chipboard screws
Properties
| Bore diameter [mm] | 14 |
| Min. hole depth [mm] | 90 |
| Dowel length [mm] | 75 |
| min. board thickness [mm] | 75 |
| Screw diameter [mm] | 10 - 12 |
| Amount | 20 pack |
| Alternative (similar properties) | DUBEL S14B |
Further information on DUBELS14
| Weight | 180 g / pcs |
| GTIN | 4006209501146 |
| Customs duty number | 39269097 |
| Manufacturer | Fischer |
Documents
- Catalogue page Atlas 9 (Page 1144) (PDF)
- Data sheet (Print view)
