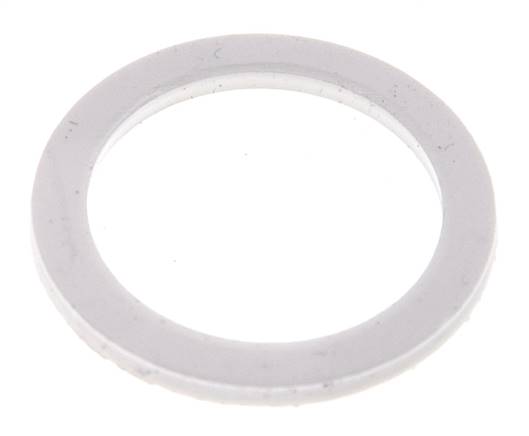

Item description
Materials:
Hard-PVC
Temperature range:
-10 to +70 °C
Operating pressure:
-0,95 to 16 bar
Hard-PVC
Temperature range:
-10 to +70 °C
Operating pressure:
-0,95 to 16 bar
Properties
| for threads | G 1/2" |
| Inner diameter [mm] | 21,2 |
| Outer diameter [mm] | 27,9 |
| Height [mm] | 2 |
| Packing unit [PCE] | 100 |
Further information on DR12K
| Weight | 0,8 g / pcs |
| GTIN | 4050571265175 |
| Packing unit | 100 pcs |
| Customs duty number | 39269097 |
| RoHS compliant | Yes |
Documents
- Catalogue page Atlas 9 (Page 1011) (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
