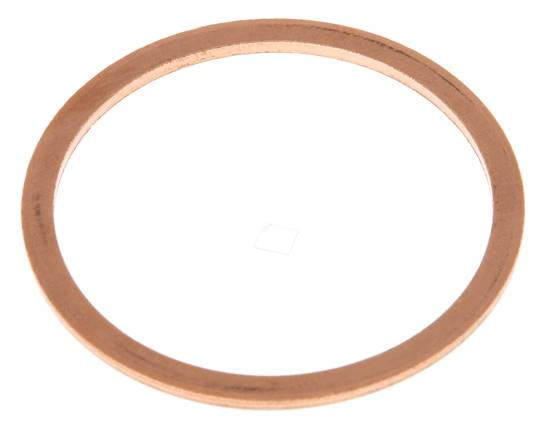

Gaskets made of copper, for G 1-1/4" (42,3x48,9x2 mm)
Item number:
DR 114 CU
Properties
| for threads | G 1-1/4" |
| Inner diameter [mm] | 42,3 |
| Outer diameter [mm] | 48,9 |
| Height [mm] | 2 |
Further information on DR114CU
| Weight | 7,1 g / pcs |
| GTIN | 4050571264956 |
| Customs duty number | 74152100 |
Documents
- Catalogue page Atlas 9 (Page 1012) (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
*similar to DIN 7603 A
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
