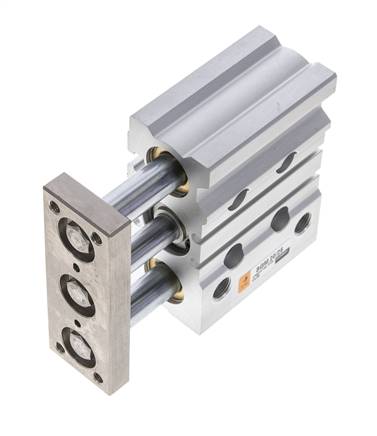

Guide cylinder, with slide bearing, pistons 20mm,stroke 25mm
{{ $t('shop.all.artikelnummer') }}:
SGM 20/25
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: Anodized aluminium, Plate: Steel, Guiding rods: Steel, hard chrome-plated, piston rod: Steel, hard chrome-plated, piston: Aluminium, Gaskets: NBR / PUR
Temperature range:
-10 to +60 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D
Advantages:
•ideal for picking up large lateral loads,
•numerous fastening options,
•guidance with self-lubricating sliding bearings,
•Twist tolerance < 0.1° (±),
•air connection from at the side or from below (closed with stopper plugs),
•main installation dimensions identical to SMC series MGPM
Body: Anodized aluminium, Plate: Steel, Guiding rods: Steel, hard chrome-plated, piston rod: Steel, hard chrome-plated, piston: Aluminium, Gaskets: NBR / PUR
Temperature range:
-10 to +60 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D
Advantages:
•ideal for picking up large lateral loads,
•numerous fastening options,
•guidance with self-lubricating sliding bearings,
•Twist tolerance < 0.1° (±),
•air connection from at the side or from below (closed with stopper plugs),
•main installation dimensions identical to SMC series MGPM
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Piston diameter [mm] | 20 |
| Stroke [mm] | 25 |
| Version | with slide bearing |
| G (compressed air port) | G 1/8" |
| Repair sets | SGM 20 REP |
| lateral force permissible [N] | 61 |
| permissible torque at the end-plate [Nm] | 1,42 |
| C [mm] | 37,0 |
| D [mm] | 12 |
| D1 [mm] | 10 |
| E [mm] | 0 |
| FA [mm] | 10 |
| FB [mm] | 16 |
| GA [mm] | 9,0 |
| GB [mm] | 10,5 |
| GC [mm] | 10,5 |
| GD [mm] | 12,5 |
| GE [mm] | 10,5 |
| H [mm] | 83 |
| J [mm] | 25,0 |
| K [mm] | 29 |
| L1 [mm] | 6 |
| L2 [mm] | 3 |
| M | M 6 |
| M1 [mm] | 12 |
| ML [mm] | 13 |
| MM | M 5 |
| N [mm] | 17 |
| NN [mm] | 24 |
| P [mm] | 5,2 |
| PA (+0,03 / -0) [mm] | 3 |
| PP [mm] | 3,5 |
| Q [mm] | 18 |
| QL [mm] | 70 |
| R (± 0,02) [mm] | 28 |
| RR [mm] | 54 |
| T [mm] | 9.5 (5.5 deep) |
| V [mm] | 44 |
| VA [mm] | 8,4 |
| VB [mm] | 5,4 |
| VC [mm] | 4,5 |
| VD [mm] | 2,8 |
| VE [mm] | 7,8 |
| W [mm] | 36 |
| WA [mm] | 72 |
| WB [mm] | 24 |
| WL [mm] | 81 |
| WW [mm] | 30 |
{{ $t('shop.display.artikel.info') }} SGM20/25
| {{ $t('shop.all.gewicht') }} | 700 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571873547 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84123100 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
| {{ $t('shop.all.hersteller') }} | EMC |
