Item description
Description:

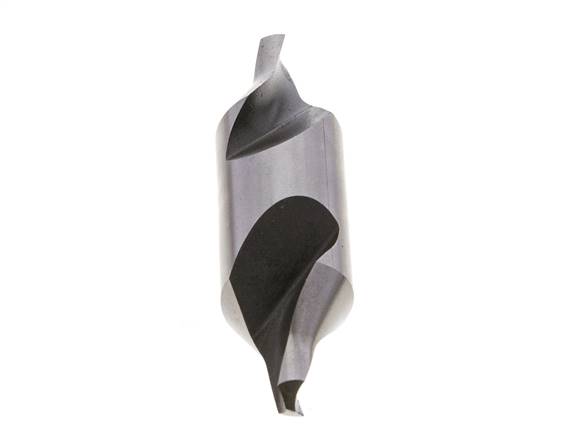

Right-hand cutting centre drill, form A, countersink angle 60°, surface bright, for producing centre holes according to DIN 332-1, form A (without protection countersink)
Qualities:
HSS-G:
Use for steel, cast steel alloyed and unalloyed (<800 N/mm² tensile strength), grey, malleable, nodular and die cast iron, sintered iron, nickel silver, graphite, short-chipping aluminium alloys, brass, bronze and plastics.
HSS-G Co 5 (HSS-E):
Use for steel, cast steel alloyed and unalloyed (<1300 N/mm² tensile strength), grey, malleable, nodular and die cast iron, sintered iron, nickel silver, graphite, short-chipping aluminium alloys, brass, bronze and plastics. Can also be used for hot and cold work steels, as well as rust and acid resistant steels (stainless steels V2A / V4A).
Right-hand cutting centre drill, form A, countersink angle 60°, surface bright, for producing centre holes according to DIN 332-1, form A (without protection countersink)
Qualities:
HSS-G:
Use for steel, cast steel alloyed and unalloyed (<800 N/mm² tensile strength), grey, malleable, nodular and die cast iron, sintered iron, nickel silver, graphite, short-chipping aluminium alloys, brass, bronze and plastics.
HSS-G Co 5 (HSS-E):
Use for steel, cast steel alloyed and unalloyed (<1300 N/mm² tensile strength), grey, malleable, nodular and die cast iron, sintered iron, nickel silver, graphite, short-chipping aluminium alloys, brass, bronze and plastics. Can also be used for hot and cold work steels, as well as rust and acid resistant steels (stainless steels V2A / V4A).
Properties
| Quality | HSS-G |
| Version | Single centre drill |
| Diameter [mm] | 8,0 |
| Shaft diameter [mm] | 20,0 |
| Total length [mm] | 80 |
Further information on BOHRZB8HSS
| Weight | 95 g / pcs |
| GTIN | 4050571923600 |
| Customs duty number | 82075060 |
| RoHS compliant | Yes |
Documents
- Catalogue page Atlas 9 (Page 989) (PDF)
- Data sheet (Print view)
*unilateral
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
