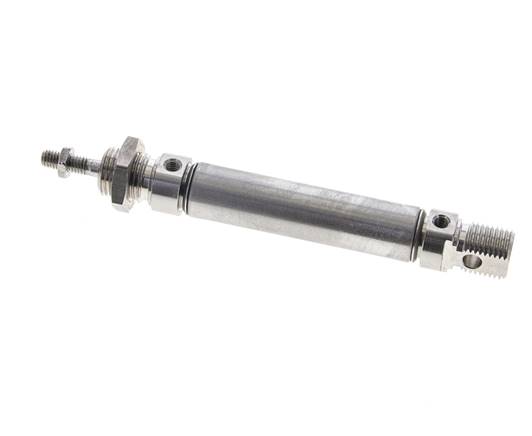

ISO 6432 cylinders, stainless steel, piston 16 mm, stroke 40 mm
Item number:
ZDM 16/40 ES
Item description
Materials:
Head and foot: 1.4301, cylinder tube: 1.4301, piston rod: 1.4436, seals: NBR / PUR
Temperature range:
-20°C to +80°C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
C in combination with mounting E1
Optional:
FKM seals (temperature range: -20°C to max. +150°C, without magnetic piston) -V
Head and foot: 1.4301, cylinder tube: 1.4301, piston rod: 1.4436, seals: NBR / PUR
Temperature range:
-20°C to +80°C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
C in combination with mounting E1
Optional:
FKM seals (temperature range: -20°C to max. +150°C, without magnetic piston) -V
Properties
| Piston diameter [mm] | 16 |
| Stroke [mm] | 40 |
| Version | Standard |
| A (piston rod thread) | M 6 |
| B (fastening thread) | M 16x1,5 |
| G (compressed air port) | M 5 |
| A1 [mm] | 6 |
| C [mm] | 19 |
| D [mm] | 12 |
| E [mm] | 6 |
| F [mm] | 16 |
| G [mm] | 82 |
| K [mm] | 22 |
| L [mm] | 18 |
| M [mm] | 109 |
| N [mm] | 9 |
| P [mm] | 53 |
| CH [mm] | 5 |
Further information on ZDM16/40ES
| Weight | 160 g / pcs |
| GTIN | 4050571811549 |
| Tariff No. | 84123100 |
| RoHS compliant | Yes |
| Manufacturer | Airtec (WEEE DE94696834 ) |
YouTube videos:
Documents
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
