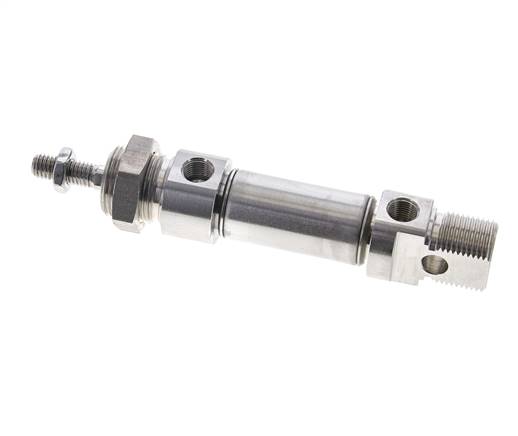

ISO 6432 cylinders, stainless steel, piston 20 mm, stroke 10 mm
Item number:
ZDM 20/10 ES
Item description
Materials:
Head and foot: 1.4301, cylinder tube: 1.4301, piston rod: 1.4436, seals: NBR / PUR
Temperature range:
-20°C to +80°C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
C in combination with mounting E1
Optional:
FKM seals (temperature range: -20°C to max. +150°C, without magnetic piston) -V
Head and foot: 1.4301, cylinder tube: 1.4301, piston rod: 1.4436, seals: NBR / PUR
Temperature range:
-20°C to +80°C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
C in combination with mounting E1
Optional:
FKM seals (temperature range: -20°C to max. +150°C, without magnetic piston) -V
Properties
| Piston diameter [mm] | 20 |
| Stroke [mm] | 10 |
| Version | Standard |
| A (piston rod thread) | M 8 |
| B (fastening thread) | M 22x1,5 |
| G (compressed air port) | G 1/8" |
| A1 [mm] | 8 |
| C [mm] | 27 |
| D [mm] | 16 |
| E [mm] | 8 |
| F [mm] | 20 |
| G [mm] | 95 |
| K [mm] | 24 |
| L [mm] | 20 |
| M [mm] | 131 |
| N [mm] | 12 |
| P [mm] | 67 |
| CH [mm] | 7 |
Further information on ZDM20/10ES
| Weight | 310 g / pcs |
| GTIN | 4050571811655 |
| Tariff No. | 84123100 |
| RoHS compliant | Yes |
| Manufacturer | Airtec (WEEE DE94696834 ) |
YouTube videos:
Documents
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
