Item description
Materials:
Stainless steel type:
Body: stainless steel (1.4408), seal: NBR, handle: stainless steel, ring / safety pin / chain, if needed: stainless steel
Polypropylene type*:
Bodies: Polypropylene, Seal: EPDM (11/4" plug Ø 45 mm): NBR, handle: Stainless steel, ring / safety pin / if needed. chain: Stainless steel
Type Brass:
Body: brass, seal: NBR, handle: brass, ring / safety pin / chain, if needed: stainless steel
Aluminium type:
Body: aluminium, seal: NBR, handle: stainless steel, ring / safety pin / chain, if needed: zinc plated steel
Temperature range:
-10 to +80 °C
Advantages:
•Full bore,
•Low pressure drop,
•Also suitable for solids, as no internal valves,
•Dimensions standardised worldwide according to MIL-C-27487 (1/2" & 5" correspond to industry standard, as not covered in MIL-C-27487)
Stainless steel type:
Body: stainless steel (1.4408), seal: NBR, handle: stainless steel, ring / safety pin / chain, if needed: stainless steel
Polypropylene type*:
Bodies: Polypropylene, Seal: EPDM (11/4" plug Ø 45 mm): NBR, handle: Stainless steel, ring / safety pin / if needed. chain: Stainless steel
Type Brass:
Body: brass, seal: NBR, handle: brass, ring / safety pin / chain, if needed: stainless steel
Aluminium type:
Body: aluminium, seal: NBR, handle: stainless steel, ring / safety pin / chain, if needed: zinc plated steel
Temperature range:
-10 to +80 °C
Advantages:
•Full bore,
•Low pressure drop,
•Also suitable for solids, as no internal valves,
•Dimensions standardised worldwide according to MIL-C-27487 (1/2" & 5" correspond to industry standard, as not covered in MIL-C-27487)

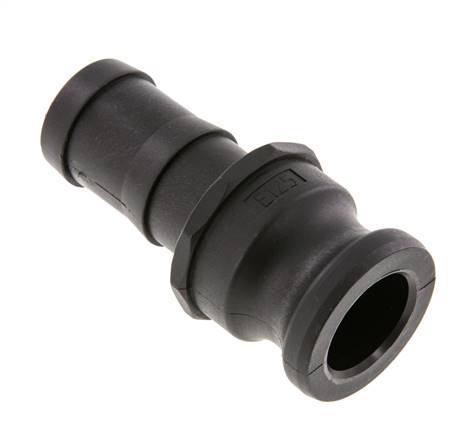

Properties
| Material | Polypropylene* |
| Hose diameter (inner) [mm] | 32 (1-1/4") |
| DN [mm] | 32 (1-1/4") |
| Plug diameter [mm] | 45,5 |
| PN [bar] | 6 |
Further information on KLSS32PP
| Weight | 65 g / pcs |
| GTIN | 4050571163761 |
| Customs duty number | 39174000 |
Documents
- Catalogue page Atlas 9 (Page 352) (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
*For liquids, please use your preferred stainless steel, brass or aluminium, pressure values at +40°C, **plug Ø 53,4 mm with reduced connection. This does not comply with the standard, ***four hand levers, ****one hand lever without safety pin
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
