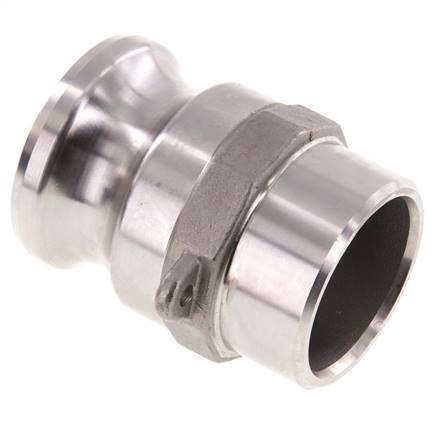

Kamlock plug with weld ends 48,3mm

Item number:

KLSAS 112 ES

All items of this group
€52.41 incl. VAT
pcs
Item description
Materials:

Stainless steel type:
 Body: stainless steel (1.4408), seal: NBR, handle: stainless steel, ring / safety pin / chain, if needed: stainless steel

Polypropylene type*:
 Bodies: Polypropylene, Seal: EPDM (11/4" plug Ø 45 mm): NBR, handle: Stainless steel, ring / safety pin / if needed. chain: Stainless steel

Type Brass:
 Body: brass, seal: NBR, handle: brass, ring / safety pin / chain, if needed: stainless steel

Aluminium type:
 Body: aluminium, seal: NBR, handle: stainless steel, ring / safety pin / chain, if needed: zinc plated steel

Temperature range:
 -10 to +80 °C

Advantages:
 •Full bore,
•Low pressure drop,
•Also suitable for solids, as no internal valves,
•Dimensions standardised worldwide according to MIL-C-27487 (1/2" & 5" correspond to industry standard, as not covered in MIL-C-27487)
Properties
Ma­te­r­ial Stain­less steel (1.4408)
Weld­ing end di­am­e­ter [mm] 48,3
DN 40 (1-1/2")
Plug di­am­e­ter 53,4
PN [bar] 18
Further information on KLSAS112ES
Weight 290 g / pcs
GTIN 4050571886356
Customs duty number 73071990
RoHS compliant Yes
Documents
*For liquids, please use your preferred stainless steel, brass or aluminium, pressure values at +40°C, **plug Ø 53,4 mm with reduced connection. This does not comply with the standard, ***four hand levers, ****one hand lever without safety pin


All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
