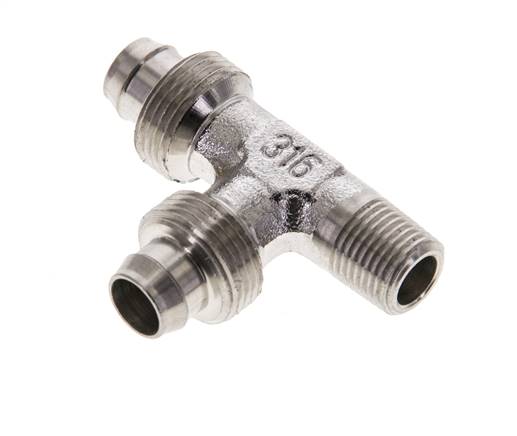

LE threaded piece R 1/8"-10x8mm, 1.4305 without nuts

Name: LE threaded piece R 1/8"-10x8mm, 1.4305 without nuts
Brand: Landefeld
SKU: LEK 188 ES
Price: 83.84 EUR
Availability: InStock

Item number:

LEK 188 ES

All items of this group

360-degree view: LEK 188 ES - LE threaded piece R 1/8"-10x8mm, 1.4305 without nuts

€83.84 incl. VAT

Quantity

pcs

Immediately available from the warehouse; order by 16:30 and we will send it today.

Item description

Operating pressure*:
corresponds to the pipes used

Temperature range*:
corresponds to the pipes used

Warning: Order accessories at the same time!
2 x union nuts

Properties

Material	1.4305
Screw-in thread	R 1/8"
Hose diameter (outer x inner) [mm]	10x8
Thread for union nut	M 14x1
Nut 1.4571	MCK 8 ES
Nut MS nickel-plated	MCK 8 MSV
Nut POM	MCK 8 K

Further information on LEK188ES

Weight	23 g / pcs
GTIN	4050571466459
Customs duty number	73071990

Documents

Catalogue page Atlas 9 (Page 109) (PDF)
3D CAD file (volume model) (Only for customers that are logged in) (STP)
Data sheet (Print view)

*with use of a metal union nut

All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
