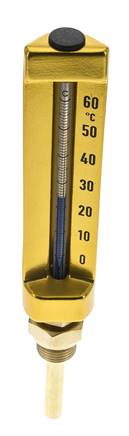

Machine thermometer (150mm) vertical/0 to +60°C/63mm
Item number:
SITS 6015063
Item description
Application:
For use in general mechanical engineering, plant and tank construction as well as central heating and large-scale heating systems
Materials:
Housing: Aluminium anodized to brass colour, Dip shaft: Brass
Protective tube connection:
G 1/2" (thermowell model C)
Dip shaft Ø:
10 mm
Class:
1
Temperature range:
Environment: -40 to +70 °C
Operating pressure at the stem:
max. 25 bar
For use in general mechanical engineering, plant and tank construction as well as central heating and large-scale heating systems
Materials:
Housing: Aluminium anodized to brass colour, Dip shaft: Brass
Protective tube connection:
G 1/2" (thermowell model C)
Dip shaft Ø:
10 mm
Class:
1
Temperature range:
Environment: -40 to +70 °C
Operating pressure at the stem:
max. 25 bar
Properties
| Version | vertical |
| H [mm] | 150 |
| Display range [°C] | 0 to +60 |
| Stem length L [mm] | 63 |
| Scale division [K] | 1 |
| Standard | DIN 16185 Form B |
Further information on SITS6015063
| Weight | 290 g / pcs |
| GTIN | 4050571627843 |
| Customs duty number | 90251180 |
Documents
- Catalogue page Atlas 9 (Page 691e) (PDF)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
