Item description
Flow:
Kv value 0.69 m³/h, 320 l/min*
Version:
Self-relieving diaphragm pressure regulator (with secondary venting), optionally a non-relieving
Materials:
Body: V4A, spring hood: POM, diaphragms and seals: FKM, springs: zinc plated steel (type DR 14-10 ES: V4A)
Temperature range:
-10 to +80 °C
Input pressure:
max. 25 bar
Pressure gauge connection:
G 1/8"
Switch panel thread:
M 30x1,5
Media:
Oiled and unoiled compressed air, non-toxic gasses (option -NB: gasses and liquids)
Optional:
Open-loop version for gases and liquids -NB
Kv value 0.69 m³/h, 320 l/min*
Version:
Self-relieving diaphragm pressure regulator (with secondary venting), optionally a non-relieving
Materials:
Body: V4A, spring hood: POM, diaphragms and seals: FKM, springs: zinc plated steel (type DR 14-10 ES: V4A)
Temperature range:
-10 to +80 °C
Input pressure:
max. 25 bar
Pressure gauge connection:
G 1/8"
Switch panel thread:
M 30x1,5
Media:
Oiled and unoiled compressed air, non-toxic gasses (option -NB: gasses and liquids)
Optional:
Open-loop version for gases and liquids -NB
Properties

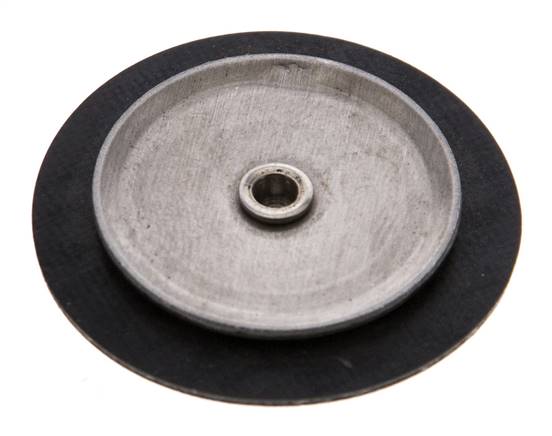

| Version | Replacement diaphragm made of FKM, resettable, for standard regulating option |
Further information on MEMBDR14ES
| Weight | 6 g / pcs |
| GTIN | 4050571486112 |
| Customs duty number | 84819000 |
| RoHS compliant | Yes |
Documents
*at 8 bar input pressure, 6 bar outlet pressure and 1 bar pressure drop, **it is possible to switch the FKM diaphragms between resettable and non-resettable.
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
