Item description
Version:

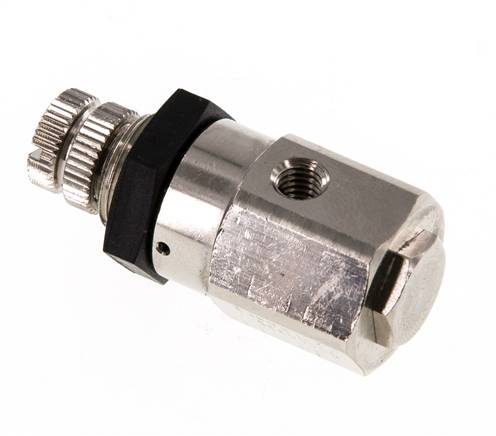

Piston pressure reducer reversible (with secondary relieving)
Materials:
Body: nickel-plated brass, seals: NBR, spring: stainless steel, panel union nut: plastic
Temperature range:
-20 to +60 °C
Pressure gauge connection:
None
Switch panel thread:
M 12x1
Media:
Compressed air, neutral gases
Flow:
75 l/min
Piston pressure reducer reversible (with secondary relieving)
Materials:
Body: nickel-plated brass, seals: NBR, spring: stainless steel, panel union nut: plastic
Temperature range:
-20 to +60 °C
Pressure gauge connection:
None
Switch panel thread:
M 12x1
Media:
Compressed air, neutral gases
Flow:
75 l/min
Properties
| Thread | M 5 |
| Pressure regulation range [bar] | 0,2 - 2 |
| input pressure [bar] | max. 6 |
Further information on RM5-2
| Weight | 44 g / pcs |
| GTIN | 4050571590949 |
| Customs duty number | 84811099 |
Documents
- Catalogue page Atlas 9 (Page 601) (PDF)
- Documentation (PDF)
- Documentation: Decision aid for selection of air units (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
*Standard series, please prefer for use, since the pressure control range is universally usable
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
