Item description
Version:

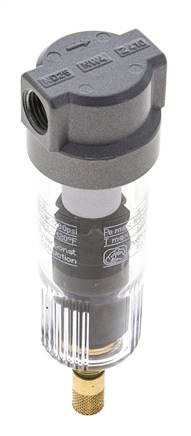

Filtering using the centrifugal principal and sintered filter
Materials:
Body: die-cast zinc Z410, condensate container: polycarbonate
Temperature range:
-10 to +60 °C
Input pressure:
1.5 - 16 bar (with metal bowl 1.5 - 25 bar, model series 8 & 9: 1.5 - 20 bar)
Condensate draining:
semi-automatic**
Media:
Compressed air, neutral gases
ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU (not model series 9)
Pore width in the filter:
5 µm
Max. condensate amount:
16 cm³
Flow:
800 l/min
Optional:
Design with metal bowl (1.5 - 25 bar) -M, automatic drain* -AM, automatic discharge closed when not pressurised* (0 - 16 bar) -AMNC
Filtering using the centrifugal principal and sintered filter
Materials:
Body: die-cast zinc Z410, condensate container: polycarbonate
Temperature range:
-10 to +60 °C
Input pressure:
1.5 - 16 bar (with metal bowl 1.5 - 25 bar, model series 8 & 9: 1.5 - 20 bar)
Condensate draining:
semi-automatic**
Media:
Compressed air, neutral gases
ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU (not model series 9)
Pore width in the filter:
5 µm
Max. condensate amount:
16 cm³
Flow:
800 l/min
Optional:
Design with metal bowl (1.5 - 25 bar) -M, automatic drain* -AM, automatic discharge closed when not pressurised* (0 - 16 bar) -AMNC
Properties
| Thread | G 1/4" |
| Container design | Plastic container |
| Condensate drain | automatic |
| Replacement filter 5 µm | FILTER DF00-5 |
| input pressure [bar] | 1,5 - 16 |
Further information on DF01AM
| Weight | 195 g / pcs |
| GTIN | 4050571937188 |
| Customs duty number | 84213925 |
| RoHS compliant | Yes |
Documents
*Not in combination with a metal bowl, **as soon as the inlet pressure falls below the minimum input pressure, the drain valve opens automatically. The semi-automatic drain valve can be prevented from opening by screwing on the drain plug tightly.
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
