Item description
Version:

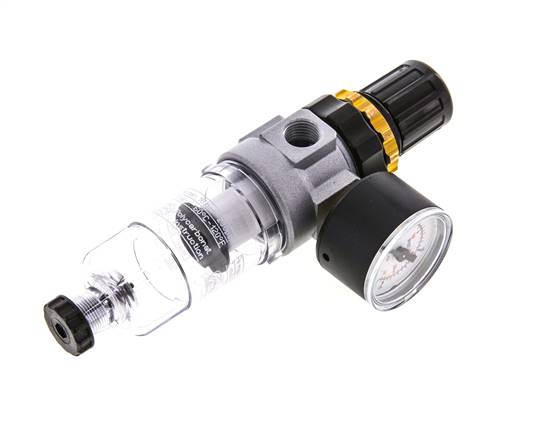

Self-relieving pressure regulator with additional filtering using the centrifugal principle and sintered filter
Materials:
Body: die-cast zinc Z410 (model series 5: aluminium), diaphragms and seals: NBR, condensate container: polycarbonate (Model series Mini: spring hood: POM)
Temperature range:
-10 to +60 °C
Input pressure:
1.5 - 16 bar (with metal bowl 1.5 - 25 bar)
Condensate draining:
semi-automatic**
Media:
Compressed air, neutral gases
ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU
Advantages:
•Automatic venting in the event of overpressure on the secondary side
Pressure gauge connection:
G 1/8"
Pore width in the filter:
5 µm
Max. condensate amount:
16 cm³
Switch panel thread:
M 30x1,5
Scope of delivery:
Pressure regulator including 40 mm pressure gauge
Flow:
350 l/min
Optional:
Version with metal bowl (1.5 - 25 bar) -M, automatic discharge*** -AM, automatic discharge closed when not pressurised (0 - 16 bar) -AMNC
Advantages:
•Handwheel can be locked by pressing it down
Self-relieving pressure regulator with additional filtering using the centrifugal principle and sintered filter
Materials:
Body: die-cast zinc Z410 (model series 5: aluminium), diaphragms and seals: NBR, condensate container: polycarbonate (Model series Mini: spring hood: POM)
Temperature range:
-10 to +60 °C
Input pressure:
1.5 - 16 bar (with metal bowl 1.5 - 25 bar)
Condensate draining:
semi-automatic**
Media:
Compressed air, neutral gases
ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU
Advantages:
•Automatic venting in the event of overpressure on the secondary side
Pressure gauge connection:
G 1/8"
Pore width in the filter:
5 µm
Max. condensate amount:
16 cm³
Switch panel thread:
M 30x1,5
Scope of delivery:
Pressure regulator including 40 mm pressure gauge
Flow:
350 l/min
Optional:
Version with metal bowl (1.5 - 25 bar) -M, automatic discharge*** -AM, automatic discharge closed when not pressurised (0 - 16 bar) -AMNC
Advantages:
•Handwheel can be locked by pressing it down
Properties
| Thread | G 1/4" |
| Pressure regulation range [bar] | 0,1 - 3 |
| Container design | Plastic container |
| Condensate drain | Semi-automatic |
| Pressure gauge display [bar] | 0 - 4 |
| Mounting brackets | WHM 30 |
| input pressure [bar] | 1,5 - 16 |
Further information on FD01-3
| Weight | 320 g / pcs |
| GTIN | 4050571293475 |
| Customs duty number | 84811005 |
| RoHS compliant | Yes |
Documents
*Standard series, please prefer for use, since the pressure control range is universally usable, **As soon as the input pressure drops below the min. input pressure, the drain valve opens automatically. By screwing the drain screw tight, the semi-automatic opening of the drain valve can be prevented. ***in conjunction with metal bowl max. 16 bar
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
