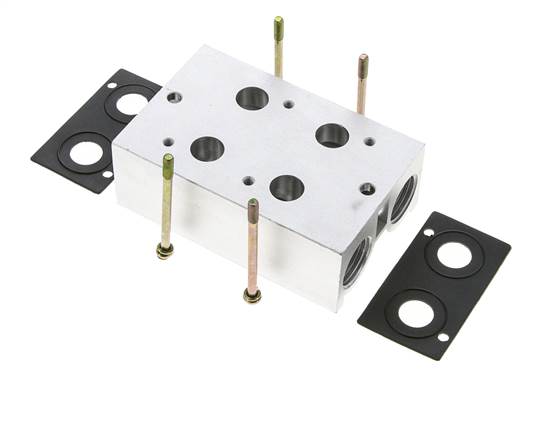

Multiple manifold (2-fold) for 3/2-way valves
{{ $t('shop.all.artikelnummer') }}:
V 34-2
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: aluminium, seals: NBR
Scope of delivery:
Basic body with screws and seals (please order valves separately)
Body: aluminium, seals: NBR
Scope of delivery:
Basic body with screws and seals (please order valves separately)
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Design | for 3/2-way valves |
| Version | for model series RV40 |
| Number of stations [PCE] | 2 |
| Description | Multiple manifold |
| matching dummy plate* | V 34-BP |
| *Spare seal including screws | V 34-REP |
| A [mm] | 31,5 |
| B [mm] | 35 |
| C [mm] | 7 |
| D [mm] | 62,5 |
| E [mm] | 40,5 |
| F [mm] | 31,5 |
| G1 (2x) | G 1/2" |
| G2 (exhaust air) | 2x G 1/2" |
| H [mm] | 0 |
| J [mm] | 5,5 |
| K [mm] | 35,0 |
| L [mm] | 27 |
| M [mm] | 35,5 |
| N [mm] | 19,00 |
{{ $t('shop.display.artikel.info') }} V34-2
| {{ $t('shop.all.gewicht') }} | 310 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571715410 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84819000 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
| {{ $t('shop.all.hersteller') }} | EMC |
