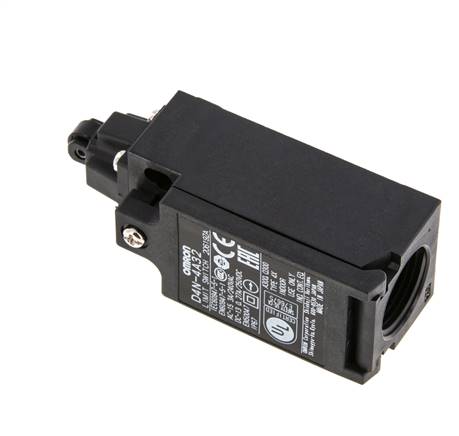

Omron safety position switch, Roller plunger
{{ $t('shop.all.artikelnummer') }}:
D4N4A32
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Housing: plastic
Temperature range:
-30 to +70 °C
Electrical connection:
Screw terminals, cable gland: M 20x1,5 (FT)
Protection class:
IP 67
Switch type:
1 Opener (NC) and 1 Closer (NO)
Switching capacity:
240 V (AC), max. 3 A / 30 V (DC), max. 3 A
Minimum switch load:
Ohmic load of 1 mA at 5 V DC
Actuator:
can be rotated by 90° in 4 positions
Advantages:
•High reliability because of gold plating,
•used for standard and micro-loads
Housing: plastic
Temperature range:
-30 to +70 °C
Electrical connection:
Screw terminals, cable gland: M 20x1,5 (FT)
Protection class:
IP 67
Switch type:
1 Opener (NC) and 1 Closer (NO)
Switching capacity:
240 V (AC), max. 3 A / 30 V (DC), max. 3 A
Minimum switch load:
Ohmic load of 1 mA at 5 V DC
Actuator:
can be rotated by 90° in 4 positions
Advantages:
•High reliability because of gold plating,
•used for standard and micro-loads
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version |
Contact with slow action, forced open |
| Actuator | Roller plunger |
{{ $t('shop.display.artikel.info') }} D4N4A32
| {{ $t('shop.all.gewicht') }} | 95 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571244910 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 85365007 |
| {{ $t('shop.all.hersteller') }} | Omron |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 891) atlas9_seiten/891.pdf
