Quick release coupling socket (NW5) 9 (3/8")mm hose, Nickel-plated brass

KDAS 9 NW5 MSV

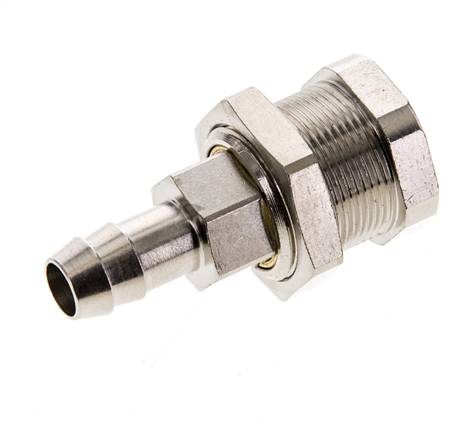

Exemplary representation: Breakaway coupling socket with grommet & bulkhead thread, brass detailed view: Plug dimensions
50,05€ incl. VAT
pcs
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: brass, nickel-plated brass, hardened steel or stainless steel 1.4305, seal: NBR (stainless steel: FKM)

Temperature range:
-20°C to max. +100°C (Stainless steel: -15°C to max. +200°C)

Operating pressure:
-0,95 to 35 bar

Flow*:
510 l/min (in conjunction with blocking coupling plug -BA: 330 l/min)

Note:
Coupling plugs with valve for double-sided shut off (-BA) can only be used with the special coupling sockets (-BA) provided for them.

Compatible with**:
Rectus (21, 90), Camozzi, EWO, KANI, Festo (KD3/KS3), IMI-Norgren (233), Aventics (CP1-NW 5)

Application:
For example, fire service, ambulances and buses, which are supplied externally by a compressed air system for emergencies. Connecting the coupling: Inserting the plug. Loosening the coupling: Pull on the plug and hose, the coupling loosens automatically.

Installation:
To guarantee the pull-off function the coupling must be mounted with the bulkhead thread and supplied using an elastic hose.

Optional:
Can be used for plug shut-off on both sides -BA
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Material Nickel-plated brass
Hose diameter (inner) [mm] 9 (3/8")
Can be used for plug shut-off on both sides no
Version Standard
Pull-off force 0 / 6 bar [N] 30 / 35
A M 20x1
Emax [mm] 12
Temperature range [°C] -20 to +100
KDAS9NW5MSV
{{ $t('shop.all.gewicht') }} 60 g / pcs
{{ $t('shop.all.gtin') }} 4050571393694
{{ $t('shop.display.artikel.zollwarennummer') }} 84812090
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
{{ $t('shop.all.hersteller') }} Parker
