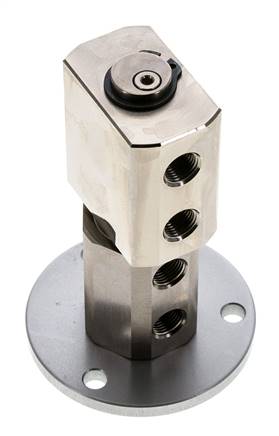

Rotary joint 2-way, G 1/8", FKM seals

DDF 18-2 V

Schematic symbol: Rotary feedthrough, 2-way
505,82€ incl. VAT
pcs
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Version:
2 separated inlets and 2 separated outlets

Materials:
Body: nickel-plated brass, seals: PUR, pilot pin, flange screw and safety ring: zinc-plated steel

Temperature range:
-10°C to +85°C

Operating pressure:
0.5 - 12 bar

Media:
Oiled compressed air

Optional:
Usage for vacuum (-1 to 0 bar) -VU, FKM seals (-20°C up to max. +150°C) -V
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Version FKM seals
G G 1/8"
Umax. [1/min] 300
DN [mm] 4
flow [l/min] 440
Temperature range [°C] -20 to +150
Operating pressure [bar] 0,5 - 12
A [mm] 97,5
E [mm] 11,5
F [mm] 20
H [mm] 12,0
M [mm] 43
N [mm] 44
O [mm] 3,5
P [mm] 15
R [mm] 40
S [mm] 25
DDF18-2V
{{ $t('shop.all.gewicht') }} 600 g / pcs
{{ $t('shop.all.gtin') }} 4050571246877
{{ $t('shop.display.artikel.zollwarennummer') }} 74122000
