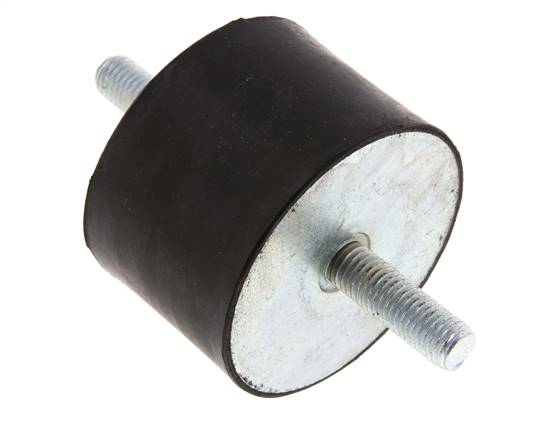

Rubber / metal buffer both sides with threaded rod M 12
Item number:
GPA 7550
Item description
Suitable:
For sound absorption and vibration isolation
Materials:
NR 55° shore with steel plate (zinc plating)
For sound absorption and vibration isolation
Materials:
NR 55° shore with steel plate (zinc plating)
Properties
| Connection | both sides |
| Version | with threaded rod |
| D [mm] | 75 |
| Height H [mm] | 50 |
| External thread | M 12 |
| Thread length L [mm] | 37 |
Further information on GPA7550
| Weight | 440 g / pcs |
| GTIN | 4050571328689 |
| Customs duty number | 40169991 |
| RoHS compliant | Yes |
Documents
- Catalogue page Atlas 9 (Page 635) (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
