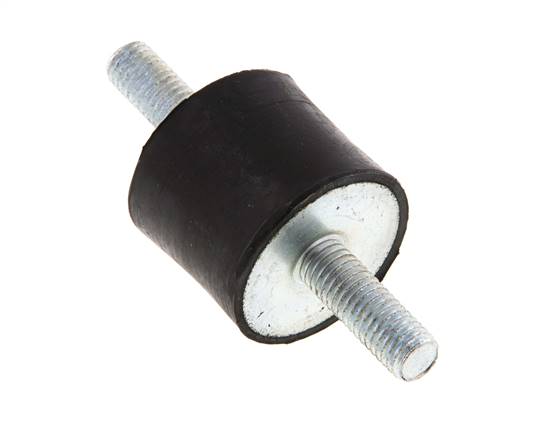

Rubber / metal buffer both sides with threaded rod M 8
Item number:
GPA 3025
Item description
Suitable:
For sound absorption and vibration isolation
Materials:
NR 55° shore with steel plate (zinc plating)
For sound absorption and vibration isolation
Materials:
NR 55° shore with steel plate (zinc plating)
Properties
| Connection | both sides |
| Version | with threaded rod |
| D [mm] | 30 |
| Height H [mm] | 25 |
| External thread | M 8 |
| Thread length L [mm] | 23 |
Further information on GPA3025
| Weight | 50 g / pcs |
| GTIN | 4050571886677 |
| Customs duty number | 40169991 |
| RoHS compliant | Yes |
Documents
- Catalogue page Atlas 9 (Page 635) (PDF)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
