Item description
Application:

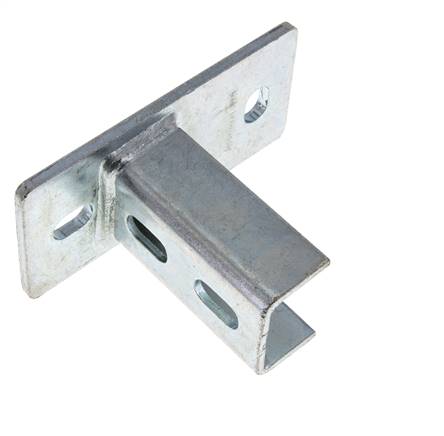

Saddle flanges are used as connecting parts to make a stable construction from assembly rails. The assembly rails are fitted with the slitted side downwards and screwed in. Can also be used as a wall bracket for assembly rails.
Saddle flanges are used as connecting parts to make a stable construction from assembly rails. The assembly rails are fitted with the slitted side downwards and screwed in. Can also be used as a wall bracket for assembly rails.
Properties
| Material | Zinc plated steel |
| suitable for profile type | 38/40, 40/60, 40/120, 41/21, 41/41 |
| Version | along |
| Hole distance base plates [mm] | 100 |
Further information on FISFL38
| Weight | 750 g / pcs |
| GTIN | 4050571870843 |
| Customs duty number | 73269060 |
Documents
- Catalogue page Atlas 9 (Page 1153) (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
